Wayne Kerr 6515P
| Attribute | Value |
|---|---|
| Measurement Parameters | Inductance (L), Capacitance (C), Resistance (R), Impedance (Z), Phase Angle (θ), Dissipation Factor (D), Quality Factor (Q) |
| Frequency Range | 20 Hz to 500 kHz |
| Basic Accuracy | 0.05% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS (programmable) |
| Display | Large LCD display with dual parameter readout |
| Interface / Connectivity | GPIB (IEEE-488) and RS-232 interfaces for remote control and automation |
| Measurement Speed | Up to 10 measurements per second (fast mode) |
| DC Bias | Internal DC bias voltage up to 2 V; compatible with external DC bias sources |
| Equivalent Circuit Modes | Series and Parallel equivalent circuit modes selectable |
| Power Requirements | 90–264 V AC, 47–63 Hz, suitable for worldwide operation |
Wayne Kerr 6515P Options:
- 6515P - /B1 - Bin handler (non-isolated 5V), 25-way D-type connector, 10 bins with absolute and percentage limits
- 6515P - /B2 - Bin handler (isolated 24V), 25-way D-type connector, 10 bins with absolute and percentage limits
- 6515P - /D1 - DC Bias (0 to +40V, 0 to +100mA)
- 6515P - /D2 - DC Bias (-40V to +40V)
| Model | 6515P |
|---|

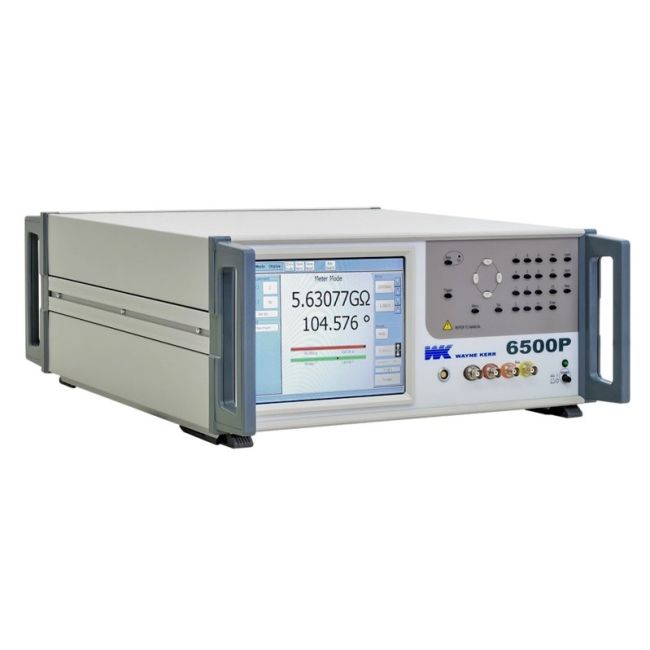

The Wayne-Kerr 6515P is an advanced programmable LCR meter engineered for precise and rapid measurements. It offers full automation capability, precision LCR testing, and powerful yet compact performance. Its intuitive software and controls are optimized for complex setups in demanding industrial environments.
Designed for advanced industrial applications, the 6515P ensures reliable accuracy and efficient operation, making it an essential tool for high-level testing requirements.
Testwall can supply the used Wayne-Kerr 6515P, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne-Kerr 6515P.
