Wayne Kerr 6540A
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 3 MHz |
| Measurement Parameters | L, C, R, Z, D, Q, θ, ESR, G, B, X, Δ%, ΔAbs |
| Basic Accuracy | 0.1% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| Test Signal Level (Current) | 0.1 mA to 20 mA RMS |
| DC Bias Voltage | 0 to ±40 V internal DC bias |
| Impedance Range | 1 mΩ to 100 MΩ |
| Display | Color LCD with simultaneous display of primary and secondary parameters |
| Interface | USB, GPIB, RS-232, Handler interface |
| Measurement Speed | Fast, Medium, and Slow measurement modes available |

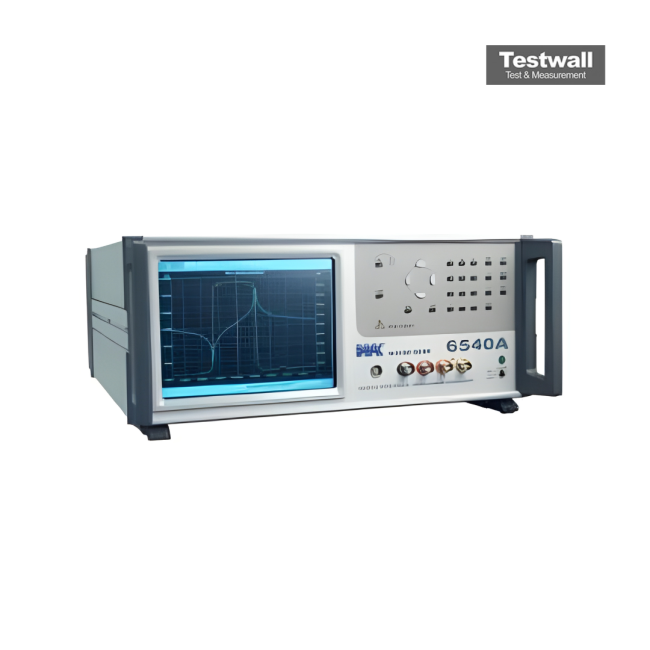

Wayne Kerr 6540A Precision Impedance Analyser 1KHz-120MHz Options:
- 6540A - B1 - Bin Handler (Non-Isolated)
- 6540A - B2 - Bin Handler (Isolated 24 V)
- 6540A - D1 - Dc Bias
- 6540A - G - Gpib Interface
| Model | 6540A |
|---|
The Wayne Kerr 6540A Precision Impedance Analyser offers test signals from 1 kHz to 120 MHz with exceptional ±0.05% basic measurement accuracy. It delivers precise high-frequency impedance measurements, clear graphical displays, and full programmability over GPIB. This analyser excels in applications such as passive component design, dielectric material characterisation, and manufacturing testing, ensuring reliability and high performance.
Designed for engineers requiring accurate evaluation of component characteristics at high frequencies, the 6540A combines speed, accuracy, and usability, making it suitable for demanding laboratory and production environments.
Testwall can supply the used Wayne Kerr 6540A Precision Impedance Analyser 1KHz-120MHz, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne Kerr 6540A Precision Impedance Analyser 1KHz-120MHz.
