Xantrex

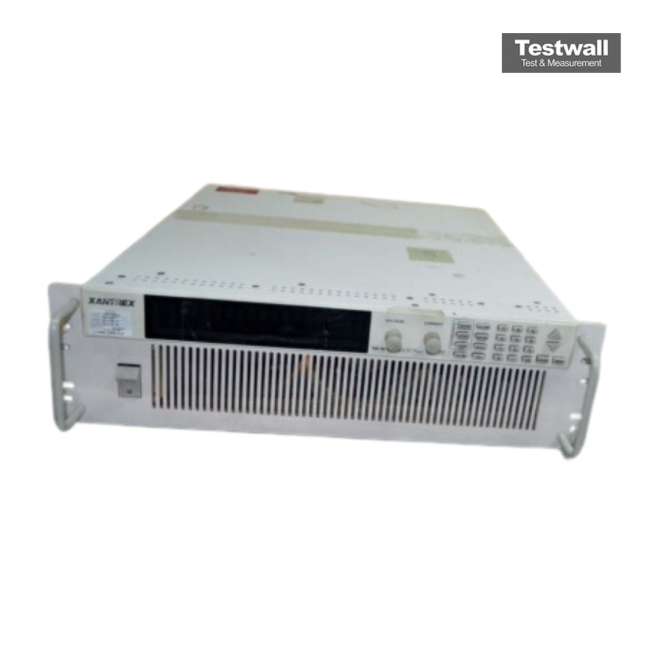

Xantrex XDC80-75
80V 75A Programmable DC Power Supply
0 – 80 V DC Output Voltage
0 – 75 A Output Current
6000 W Output Power
208/240 V AC, Single Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 V DC |
| Output Current | 0 – 75 A |
| Output Power | 6000 W |
| Input Voltage | 208/240 V AC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Interface / Control | Analog Programming, RS-232, GPIB (IEEE-488) |
Xantrex XDC80-75 Options:
- XDC80-75 - GPIB - GPIB interface card (488.2 with SCPI)
- XDC80-75 - CANbus - CANbus communications link
- XDC80-75 - HV - High voltage input: 3Ø 342-500 VAC HV input
- XDC80-75 - GPIB-MC - GPIB-multichannel
| Model | XDC80-75 |
|---|
The Xantrex XDC80-75 delivers 80V and 75A output, combining precise voltage regulation with constant current capability. Its low ripple design and multiple protection layers ensure stable performance, ideal for R&D and manufacturing environments.
Featuring remote programmability, the XDC80-75 integrates seamlessly into automated test systems. Its compact footprint supports space-limited setups while providing reliable and safe operation during extended use.
Testwall can supply the used Xantrex XDC80-75, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XDC80-75.
