Xantrex XFR33-85
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 33V DC |
| Output Current | 0 - 85A |
| Output Power | 2800W |
| Input Voltage | 208/240V AC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Output Voltage Regulation | 0.05% + 5mV |
| Output Current Regulation | 0.1% + 25mA |
| Ripple and Noise (RMS) | 3mV RMS / 50mA RMS |
| Form Factor | Rack Mount, 2U |
| Programming Interface | RS-232 / GPIB (IEEE-488) |
Xantrex XFR33-85 Options:
- XFR33-85 - ISOL - Isolated analog control
- XFR33-85 - RS-232 - RS-232 interface card
- XFR33-85 - GPIB - GPIB interface card
- XFR33-85 - GPIB-multichannel - GPIB multichannel interface
- XFR33-85 - M2 - 3 phase 208 VAC input
| Model | XFR33-85 |
|---|

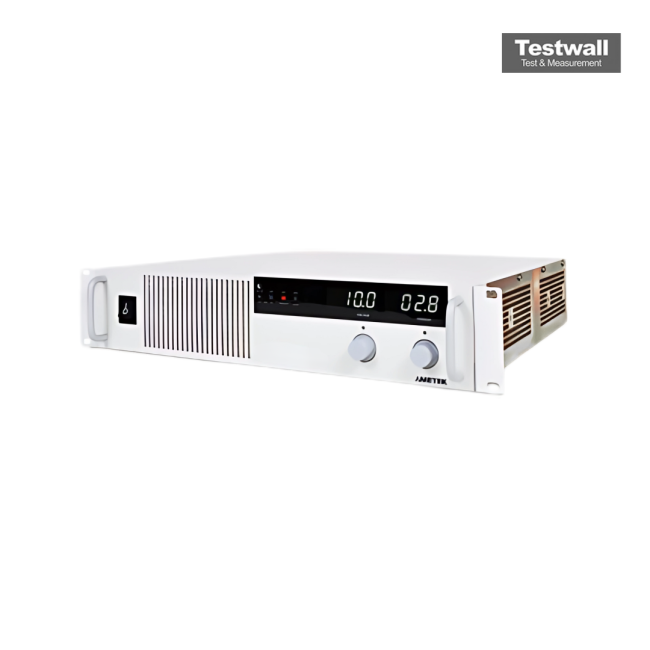

The Xantrex XFR33-85 is a programmable DC power supply providing up to 33V and 85A with a maximum output of 2805W. Engineered for precision, it ensures low ripple, low noise, and reliable voltage and current regulation. Its compact, rack-mountable design combined with an intuitive front panel interface supports ease of operation and monitoring. It also features advanced protection against over-voltage, over-current, and thermal overload, guaranteeing safe performance.
With support for remote programming via GPIB, RS-232, and analog interfaces, the Xantrex XFR33-85 integrates seamlessly into automated test environments. It is ideally suited for R&D laboratories, manufacturing facilities, and burn-in testing applications requiring stable and consistent DC power delivery.
Testwall can supply the used Xantrex XFR33-85, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XFR33-85.
