Xantrex

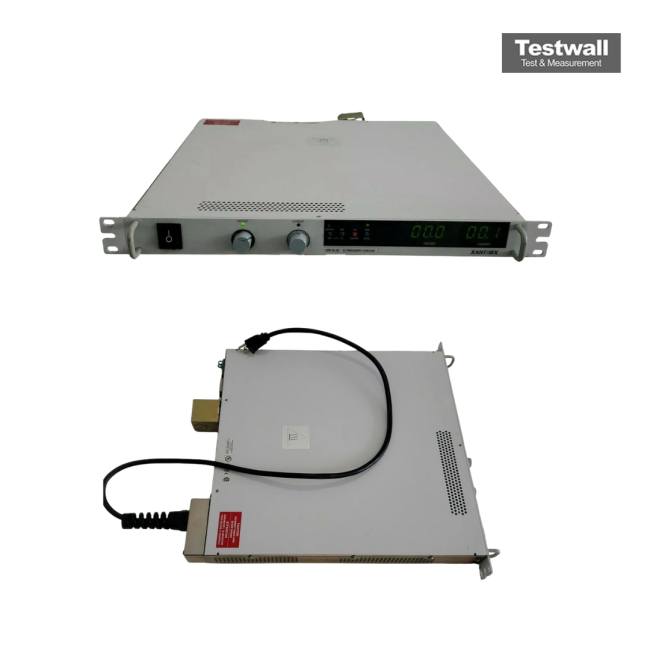

Xantrex XFR35-35
35V 35A Programmable DC Power Supply
0 - 35 VDC Output Voltage
0 - 35 A Output Current
1225 W Output Power
0.01% + 2 mV Line Regulation (Voltage)
0.01% + 2 mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 35 VDC |
| Output Current | 0 - 35 A |
| Output Power | 1225 W |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Line Regulation (Current) | 0.01% + 2 mA |
| Load Regulation (Current) | 0.01% + 2 mA |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, 47 - 63 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Interface / Programming | Analog Programming, RS-232 (optional GPIB IEEE-488) |
Xantrex XFR35-35 Options:
- XFR35-35 - ISOL - Isolated analog control
- XFR35-35 - RS-232 - RS-232 interface card
- XFR35-35 - GPIB - GPIB interface card
- XFR35-35 - GPIB-MC - GPIB-multichannel
| Model | XFR35-35 |
|---|
The Xantrex XFR35-35 delivers 35V, 35A output with 1225W max power, offering high power density and stability. It features digital displays for precise readings, remote sensing, and multiple programming interfaces including RS-232 and GPIB.
Ideal for laboratories, electronics manufacturing, and automated test systems, it ensures accuracy at the load point while providing protections like OVP, OCP, and OTP for reliable operation.
Testwall can supply the used Xantrex XFR35-35, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XFR35-35.
