Xantrex

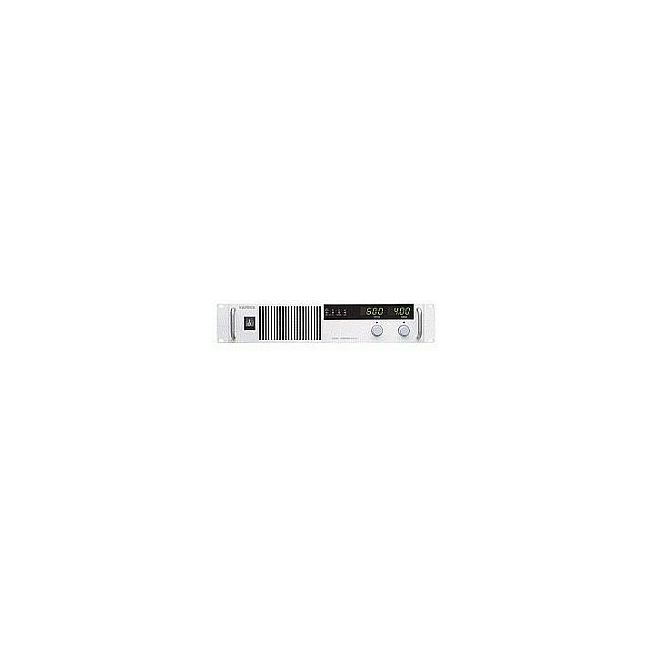

Xantrex XFR40-70
40 V, 70 AMP Switching Power Supplies
0 - 40 VDC Output Voltage
0 - 70 A Output Current
2800 W Output Power
104 - 127 VAC / 180 - 235 VAC Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 70 A |
| Output Power | 2800 W |
| Input Voltage | 104 - 127 VAC / 180 - 235 VAC |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | 3 mV RMS |
| Programming Interface | RS-232 / IEEE-488 (GPIB) Optional |
| Operating Temperature | 0°C to 50°C |
| Model | XFR40-70 |
|---|
The Xantrex XFR40-70 DC power supply delivers a maximum output of 40V and 70A with precise line/load regulation. It features wide programming flexibility via both front panel and remote interface, along with overload protection and a rugged rack-mountable design.
Suitable for demanding research and industrial environments, it ensures clean, reliable DC output and safe operation, providing efficiency and stability in complex test setups.
Testwall can supply the used Xantrex XFR40-70, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XFR40-70.
