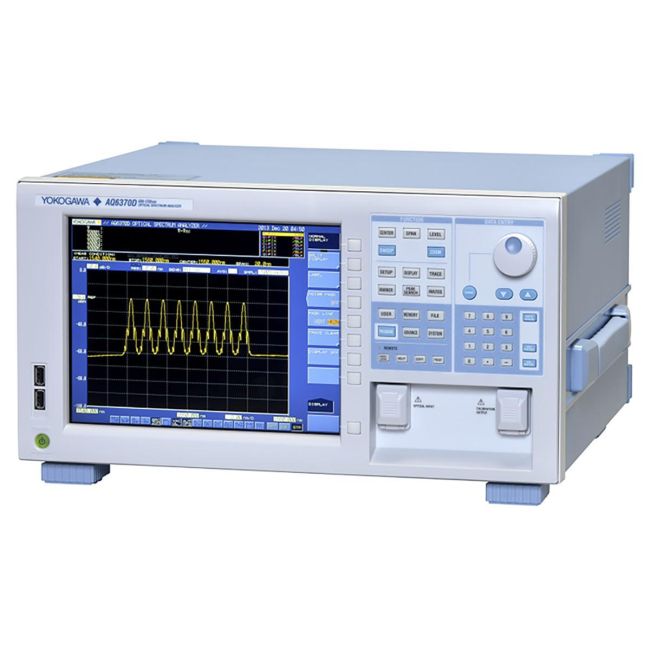

Yokogawa AQ6370D-20
Optical Spectrum Analyzer
600 nm to 1700 nm Wavelength Range
0.02 nm Wavelength Resolution
±0.01 nm Wavelength Accuracy
78 dB Dynamic Range
-90 dBm (SENS: HIGH1) Sensitivity
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1700 nm |
| Wavelength Resolution | 0.02 nm |
| Wavelength Accuracy | ±0.01 nm |
| Dynamic Range | 78 dB |
| Sensitivity | -90 dBm (SENS: HIGH1) |
| Level Measurement Range | +20 dBm to -90 dBm |
| Level Accuracy | ±0.4 dB |
| Measurement Sweep Time | 0.2 seconds minimum (single sweep) |
| Fiber Interface | Single-mode fiber (SMF), FC/PC connector |
| Display | 10.4-inch TFT color LCD touchscreen |
Yokogawa AQ6370D-20 Options:
- AQ6370D-20 - -L0 - Without light source
- AQ6370D-20 - -L1 - Wavelength reference source
- AQ6370D-20 - -D - Power cord, UL/CSA standard
- AQ6370D-20 - -F - Power cord, VDE standard
- AQ6370D-20 - -R - Power cord, AS standard
- AQ6370D-20 - -H - Power cord, GB standard
- AQ6370D-20 - -Q - Power cord, BS standard
- AQ6370D-20 - -N - Power cord, NBR standard
- AQ6370D-20 - /FC - AQ9447 (FC) Connector Adapter for Optical Input
- AQ6370D-20 - /SC - AQ9447 (SC) Connector Adapter for Optical Input
- AQ6370D-20 - /RFC - AQ9441 (FC) Universal Adapter for Calibration Output
- AQ6370D-20 - /RSC - AQ9441 (SC) Universal Adapter for Calibration Output
| Model | AQ6370D-20 |
|---|
The Yokogawa AQ6370D-22 is an optical spectrum analyzer, which is well-suited for both general purpose applications as well as telecommunications. The AQ6370D-22 has a unique free space input design, which enables testing of both DWDM single mode and VCSEL sourced multi-mode fibers in a single model.
Some of the major specifications of the Yokogawa AQ6370D-22 optical spectrum analyzer are:
- Wavelength range: 600 to 1700 nm
- Wavelength accuracy: /-0.01 nm (high-performance model)
- Wavelength resolution setting: 0.02 to 2 nm
- Level range: 20 to -90 dBm
- Close-in dynamic range: 78 dB typ. (peak /-1.0 nm, high-performance model)
- Emission spectrum evaluation of optical transceivers and LD modules
- OSNR measurement of WDM transmission signals
- Optical amplifier (EDFA) measurement
