Yokogawa TA520
| Attribute | Value |
|---|---|
| Measurement Category | Current Probe / AC/DC Current Measurement |
| Measurable Current Range | 1 mA to 500 A (AC/DC) |
| Frequency Bandwidth | DC to 2 MHz |
| Output Sensitivity | 10 mV/A |
| Maximum Conductor Diameter | 20 mm |
| Accuracy | ±1% of reading (DC, 45 Hz to 1 kHz) |
| Power Supply | Requires Yokogawa 701930 or compatible power supply unit |
| Output Connector | BNC connector |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Compatible Instruments | Yokogawa oscilloscopes and power analyzers (e.g., DL series, WT series) |
Yokogawa TA520 Time Interval Analyser Options:
- TA520 - C8 - Internal Hard Disk + Scsi
- TA520 - F1 - Inter-Symbolic Interference Analysis Function
| Model | TA520 |
|---|

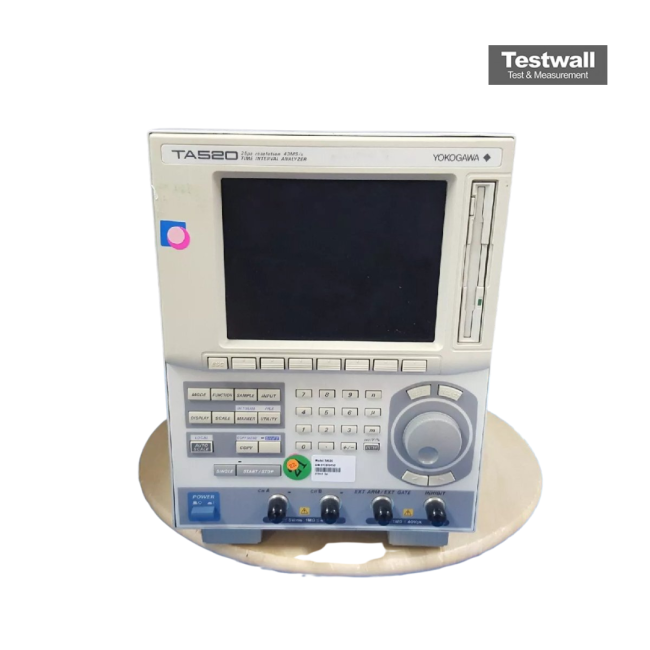

The Yokogawa TA520 Time Interval Analyser offers a time resolution of 25 ps, an internal jitter of 100 psrms, and a continuous sampling rate of 43 MS/s, making it highly suitable for precision jitter analysis of DVD optical disks. It includes a 6.4" colour LCD, internal printer, and options for an internal hard-disk & SCSI interface. The large memory supports up to 10,000,000,000 samples in hardware histogram mode and 512k samples in time stamp mode, while the auto window function ensures optimal display scaling for measurement results.
Engineered for advanced measurement tasks, the Yokogawa TA520 delivers accurate, high-speed data acquisition and processing with ease of operation for laboratory and field use.
Testwall can supply the used Yokogawa TA520, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa TA520.
