Advantest

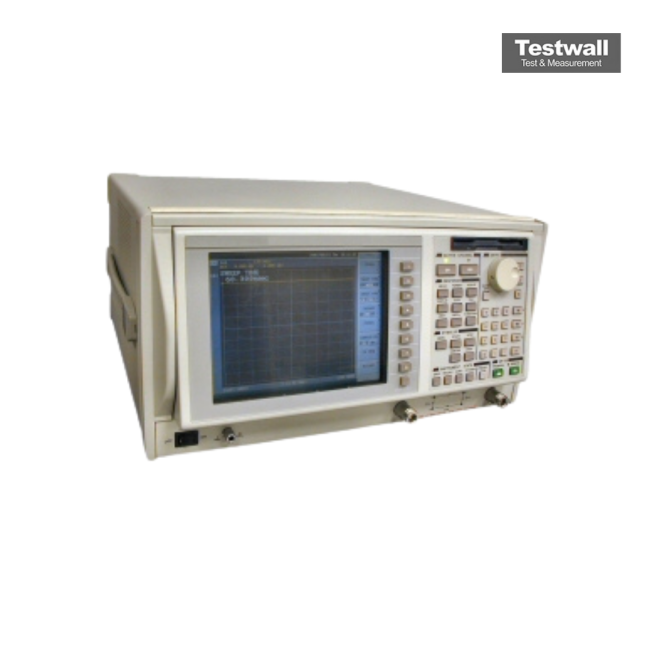

Advantest R3767AH
8GHz Vector Network Analyser
300 kHz to 8 GHz Frequency Range
-60 dBm to +10 dBm Output Power Range
120 dB Dynamic Range
S11, S21, S12, S22 (Full 2-Port S-Parameters) Measurement Parameters
10 Hz to 30 kHz IF Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 8 GHz |
| Output Power Range | -60 dBm to +10 dBm |
| Dynamic Range | 120 dB |
| Measurement Parameters | S11, S21, S12, S22 (Full 2-Port S-Parameters) |
| IF Bandwidth | 10 Hz to 30 kHz |
| Number of Test Ports | 2 |
| Display Points | 3 to 1601 points |
| Connector Type | N-Type (50 Ohm) |
| Interface | GPIB (IEEE-488) |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
| Model | R3767AH |
|---|
Advantest R3767AH 8GHz Vector Network Analyser Description: Advantest R3767AH 8GHz Vector Network Analyser
