Amplifier Research 10000LP
| Attribute | Value |
|---|---|
| Frequency Range | DC – 1 MHz |
| Output Power | 10,000 Watts (10 kW) CW |
| Gain | 50 dB minimum |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Power for Rated Output | 100 mW (20 dBm) maximum |
| Harmonic Distortion | -10 dBc or better |
| Power Requirements | 208/220 VAC, 3-phase, 50/60 Hz |
| Cooling | Forced air and liquid cooling |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | 10000LP |
|---|

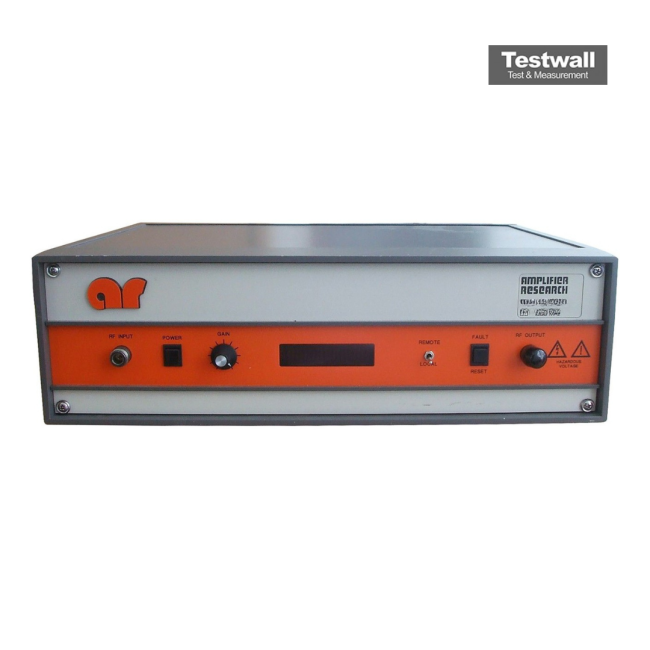

The Amplifier Research 10000LP is a broadband, high‑power amplifier engineered for high‑energy pulse applications, delivering up to 10,000 W pulse power across the 9 MHz–180 MHz HF to low‑VHF bandwidth. It features hybrid or tube final stages combined with solid‑state drivers for a linear, pulse‑optimized response suited to rigorous electromagnetic testing environments.
Equipped with precise gating, blanking, timing controls, and advanced protection systems, this amplifier excels in radar simulation, pulsed EMC immunity testing, and generator‑driven step tests.
Testwall can supply the used Amplifier Research 10000LP, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 10000LP.
