Amplifier Research 1000A225
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 225 MHz |
| Output Power | 1000 Watts CW (minimum) |
| Gain | 63 dB (typical) |
| Input for Rated Output | 100 mW (maximum) |
| Gain Flatness | ±3 dB |
| Output VSWR | 2.0:1 (maximum) |
| Input VSWR | 2.0:1 (maximum) |
| Harmonic Distortion | -10 dBc (typical at rated output) |
| Power Requirements | 220V AC, 3-phase, 50/60 Hz |
| Cooling | Forced air cooling |
Amplifier Research 1000A225 Options:
- 1000A225 - 1000A225 - N female RF Input (rear panel), 7-16 DIN female RF Output (rear panel)
- 1000A225 - 1000A225M1 - N female RF Input (front panel), 7-16 DIN female RF Output (front panel)
| Model | 1000A225 |
|---|

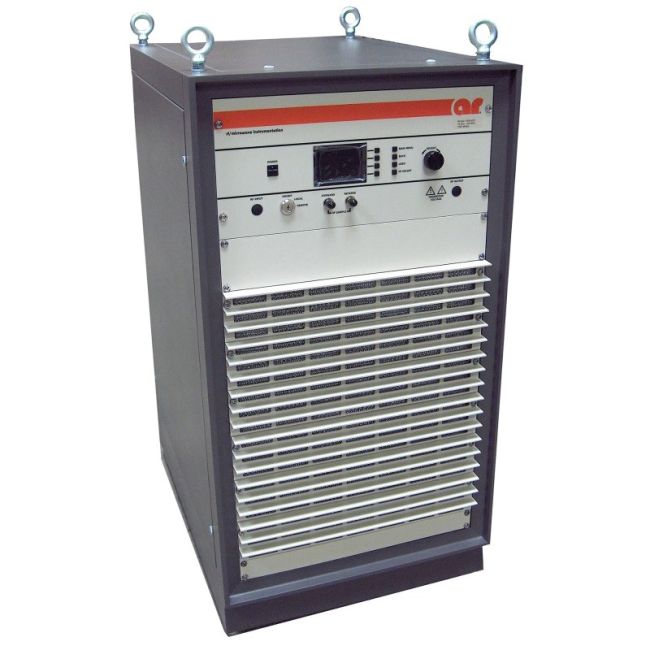

The Amplifier Research 1000A225 is a solid-state, air-cooled broadband amplifier designed for applications requiring high gain and instantaneous bandwidth. Equipped with push-pull MOSFET circuitry, it minimizes distortion and enhances stability. The integrated Digital Control Panel (DCP) features a 3.75-inch display, softkeys, rotary knob, and dedicated switches for comprehensive local and remote control. Users can monitor forward and reflected power, as well as amplifier status, with precise reporting capabilities.
With gain control, ALC threshold adjustment, RF output level protection, and RF sample ports, the Amplifier Research 1000A225 ensures reliable operation in RF susceptibility testing, antenna testing, particle accelerators, plasma generation, and more. It supports GPIB, RS-232, fiber optic, and USB interfaces for flexible remote operation.
Testwall can supply the used Amplifier Research 1000A225, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1000A225.
