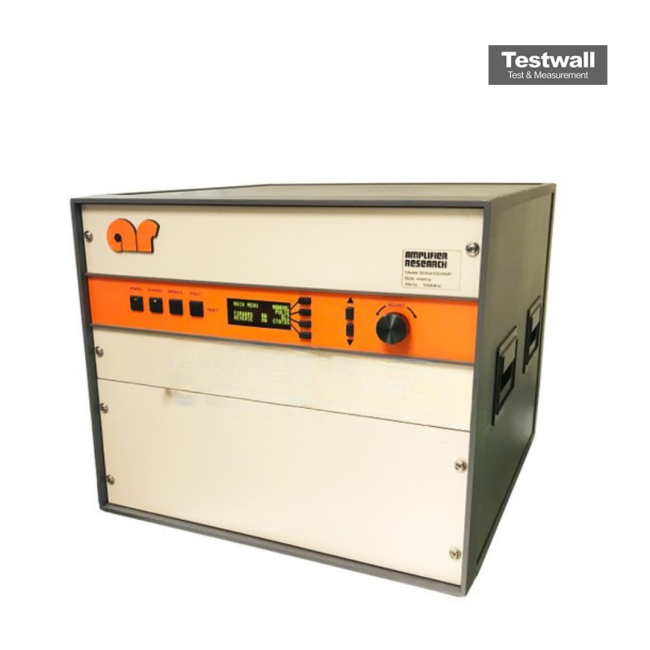

Amplifier Research 1000TP2G8
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz – 2.0 GHz |
| Output Power (Minimum Saturated) | 1000 Watts |
| Small Signal Gain | 60 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input Power for Rated Output | 0 dBm (1 mW) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum |
| Input Connector | Type N Female |
| Output Connector | 7-16 DIN Female |
| Model | 1000TP2G8 |
|---|
The Amplifier Research 1000TP2G8 is a high-performance TWT amplifier designed for pulsed-RF operations between 2.5 and 7.5 GHz. It delivers a nominal peak pulse output of 1800 W, with a minimum guaranteed 1000 W. The front-panel digital interface displays both forward and reflected RF power (average or peak), and includes diagnostics for tube conditions, thermal data, and system status.
Equipped with TTL gating, GPIB control, VSWR protection, RF sample monitoring, and auto-sleep functionality, the 1000TP2G8 is ideal for EMC pulse immunity testing, radar simulation, and high-energy wideband RF applications. Its fan-cooled chassis ensures long-term reliable use with easy service access.
Testwall can supply the used Amplifier Research 1000TP2G8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1000TP2G8.
