Amplifier Research 100S1G6
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz – 6 GHz |
| Output Power (Minimum) | 100 Watts CW |
| Gain (Typical) | 50 dB |
| Gain Flatness | ±3.5 dB |
| Input Power for Rated Output | 0 dBm (1 mW) |
| Input/Output Impedance | 50 Ohms |
| Input Connector | Type N Female |
| Output Connector | Type N Female |
| Power Requirements | 220 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
Amplifier Research 100S1G6 Options:
- 100S1G6 - M1 - Type N female RF input and output on rear panel, benchtop cabinet
- 100S1G6 - M2 - Same as 100S1G6 with enclosure removed for rack mounting (front panel RF connectors)
- 100S1G6 - M3 - Same as 100S1G6M1 with enclosure removed for rack mounting (rear panel RF connectors)
- 100S1G6 - M4 - 100S1G6M3 in 20U rack, 2 (5U) vented panels, 1 (4U) blank panel
| Model | 100S1G6 |
|---|

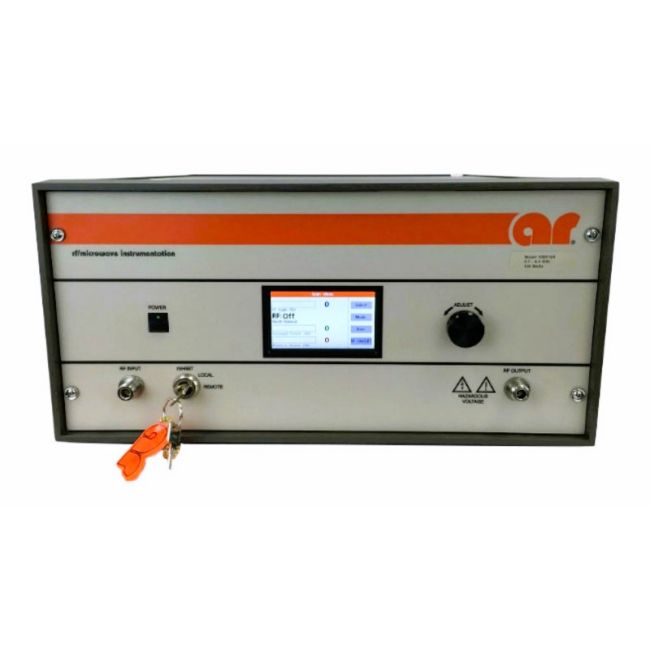

The Amplifier Research 100S1G6 is a self-contained, air-cooled broadband amplifier delivering a minimum of 100 watts RF output across 0.7 – 6 GHz. It provides high gain of 52 dB, linear performance, and low spurious emissions, making it ideal for communications testing. With protection against RF overdrive and over-temperature, digital display for status, and remote interfaces including GPIB, RS-232, USB, and Ethernet, it ensures robust and versatile operation.
This amplifier is suited for driving wireless and communication components, serving as a broadband test instrument, and supporting CDMA, W-CDMA, TDMA, GSM and other communication standards.
Testwall can supply the used Amplifier Research 100S1G6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100S1G6.
