Amplifier Research 100W1000M1
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 MHz – 1000 MHz |
| Output Power | 100 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Input Power for Rated Output | 1 mW (0 dBm) Maximum |
| Output VSWR | 2.0:1 Maximum |
| Input VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum |
| Power Supply | 208/240 VAC, Single Phase, 50/60 Hz |
| RF Output Connector | Type N Female |
| Cooling | Forced Air Cooling |
| Model | 100W1000M1 |
|---|

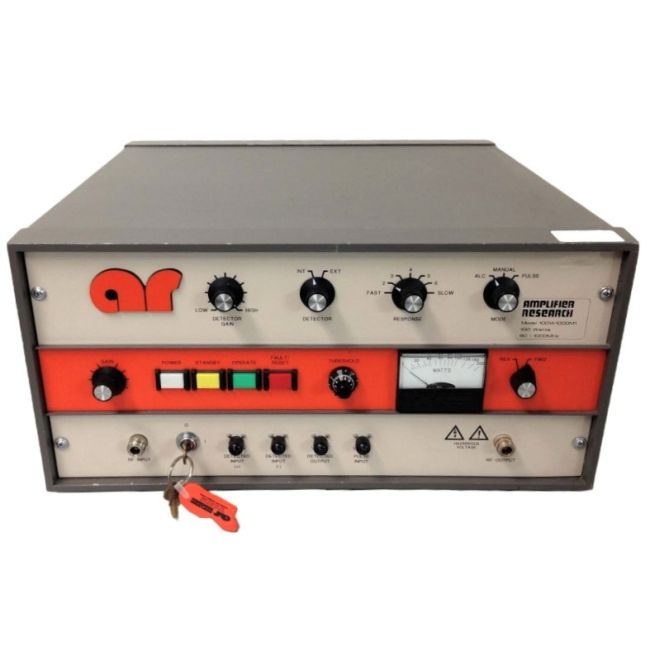

The Amplifier Research 100W1000M1 is a self-contained, air-cooled, broadband solid-state amplifier delivering a minimum of 100 watts of sweep power. Featuring push-pull circuitry in all high-power stages, it reduces distortion and enhances stability, making it ideal for precision applications. The unit is housed in a modern rack enclosure, ensuring durability and convenient integration into laboratory or test environments.
It is widely used for RF susceptibility testing, antenna and component evaluation, wattmeter calibration, and as a driver for higher power amplifiers. Remote control functionality and comprehensive protection, including DC voltage sensing and individual fusing of output modules, add to its reliability.
Testwall can supply the used Amplifier Research 100W1000M1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100W1000M1.
