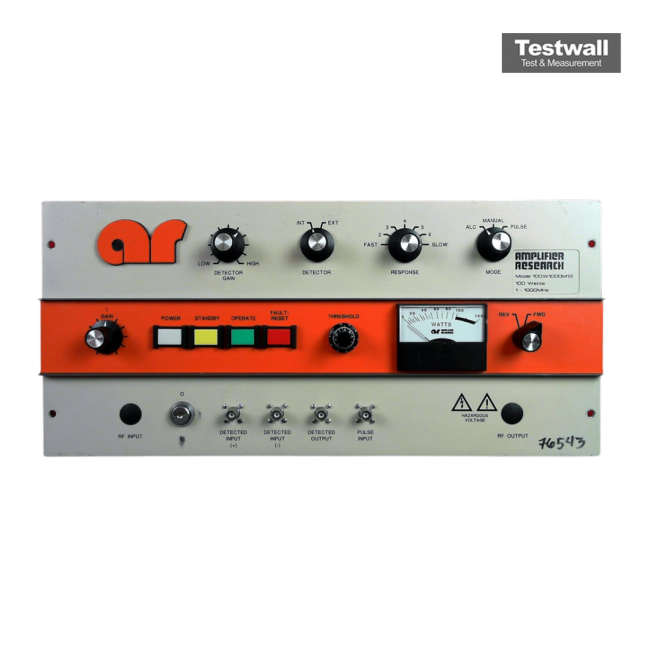

Amplifier Research 100W1000M13
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 100 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input for Rated Output | 1 mW (0 dBm) Maximum |
| Output VSWR | 2.5:1 Maximum |
| Input VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum at Rated Output |
| Power Requirements | 220 VAC, Single Phase, 50/60 Hz |
| Cooling | Forced Air Cooling |
| Model | 100W1000M13 |
|---|
The Amplifier Research 100W1000M13 delivers 100 W CW output across frequencies up to 1000 MHz, ensuring reliable broadband performance with low distortion. Its M13 functionality integrates enhanced monitoring features for automated test environments, including modulation support, system integration, and fault reporting for precise operation.
Engineered for production and compliance testing, the 100W1000M13 is optimized for demanding laboratory applications where consistent high-power performance and reliability are essential.
Testwall can supply the used Amplifier Research 100W1000M13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100W1000M13.
