Amplifier Research 100W1000M3
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 MHz – 1000 MHz |
| Output Power | 100 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Gain Flatness | ±3 dB |
| Input for Rated Output | 100 mW (20 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum |
| Power Requirements | 208/220 VAC, Single Phase, 50/60 Hz |
| Connector Type | Type N Female (Input and Output) |
| Model | 100W1000M3 |
|---|

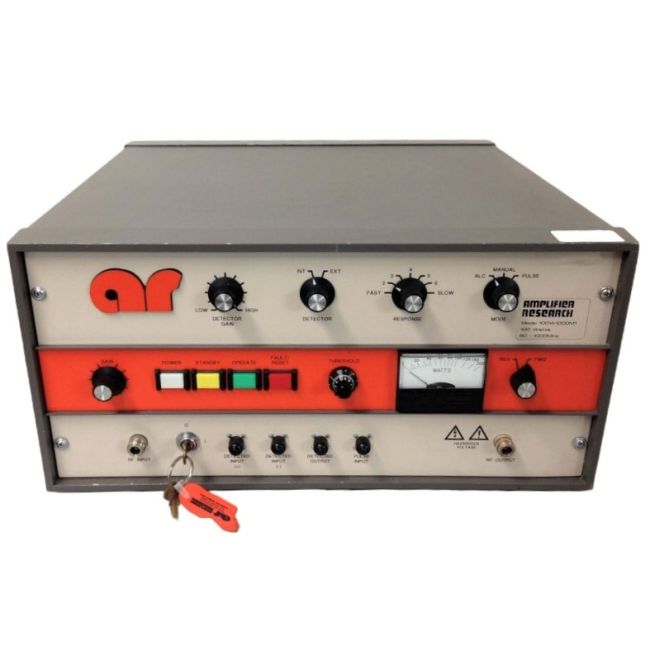

The Amplifier Research 100W1000M3 is a self-contained, air-cooled, solid-state broadband amplifier engineered for applications requiring instantaneous bandwidth and high gain. It features push-pull circuitry in all high-power stages to minimize distortion and enhance stability. When paired with an RF sweep generator, the Amplifier Research 100W1000M3 delivers a minimum of 100 watts of sweep power, making it a reliable choice for demanding RF environments.
Housed in a modern equipment rack, it provides RF power for RF susceptibility testing, antenna and component testing, wattmeter calibration, and as a driver for high-power amplifiers. Remote operation and protective features ensure safe performance.
Testwall can supply the used Amplifier Research 100W1000M3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100W1000M3.
