Amplifier Research 200T1G2
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1 GHz |
| Output Power | 200 Watts minimum continuous average |
| Gain | 50 dB minimum |
| Input Power for Rated Output | 1 mW (0 dBm) maximum |
| Harmonics and Spurious Signals | -10 dBc or less at rated output |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | Unconditionally stable into any load |
| Noise Figure | Less than 12 dB typical |
| Power Requirements | 208 VAC, 3-phase, 47–63 Hz |
| Cooling Method | Forced air (internal blower) |
| Model | 200T1G2 |
|---|

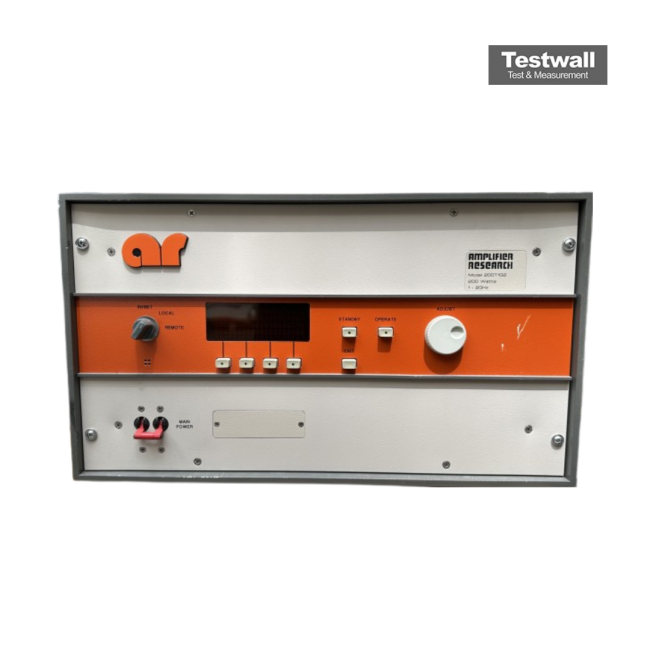

The Amplifier Research Model 200T1G2 is a self-contained, forced air-cooled broadband traveling wave tube (TWT) microwave amplifier designed for applications demanding instantaneous bandwidth and high gain. It incorporates a robust 250 W TWT that delivers a conservative 200 W minimum at the amplifier output connector, with stated power specifications given at the fundamental frequency.
Engineered for demanding RF and microwave testing environments, the 200T1G2 ensures reliable performance across wide bandwidths, offering clear system status information—including forward and reflected output—via an intuitive digital front panel with soft-key menu navigation.
Testwall can supply the used Amplifier Research 200T1G2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 200T1G2.
