Keysight (Agilent) 8349A
2-20GHz Microwave Amplifier
2 GHz to 20 GHz Frequency Range
Up to +17 dBm Output Power
Minimum 20 dB Gain
Typically 8 dB Noise Figure
50 Ohms Input/Output Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 20 GHz |
| Output Power | Up to +17 dBm |
| Gain | Minimum 20 dB |
| Noise Figure | Typically 8 dB |
| Input/Output Impedance | 50 Ohms |
| Connector Type | SMA (female) |
| Power Supply Requirement | +15 VDC at 1.5 A |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -40°C to 70°C |
| Instrument Type | Microwave Amplifier |
| Model | 8349A |
|---|

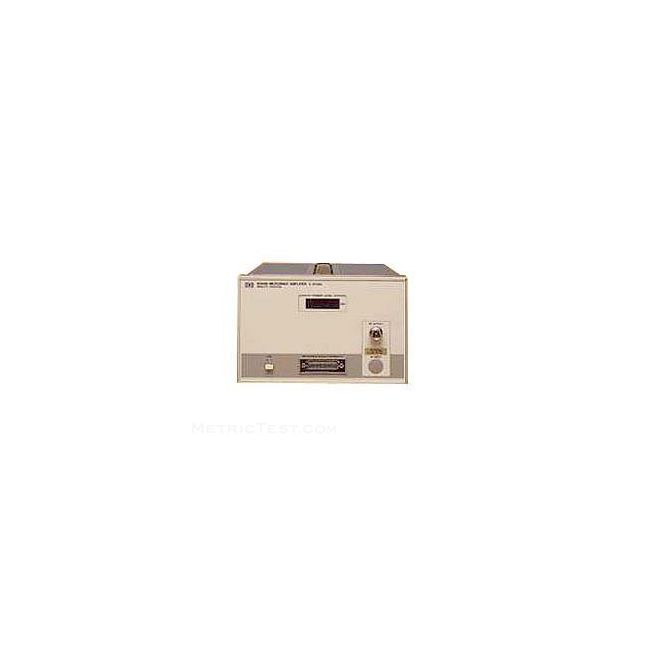

The Keysight (Agilent) 8349A Broadband Microwave Amplifier operates from 2 to 20 GHz and delivers over 15 dB gain with a maximum leveled output of +19 dBm. Designed to enhance signal generator output in high-frequency applications, it is ideal for boosting local oscillator signals, antenna measurements, and scalar network analysis. It significantly extends dynamic range by 20 dB and features an integrated power level readout, eliminating the need for external power meters or couplers.
Its solid-state design ensures stable, reliable amplification across wide frequency bands in compact RF systems.
Testwall can supply the used Keysight (Agilent) 8349A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8349A.
