Amplifier Research 200T8G18
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz to 18 GHz |
| Output Power (Minimum Saturated) | 200 Watts |
| Small Signal Gain | 55 dB minimum |
| Gain Flatness | ±4.5 dB |
| Input/Output Impedance | 50 Ohms |
| Input Connector | SMA Female |
| Output Connector | Type N Female |
| Power Requirements | 200-240 VAC, Single Phase, 47-63 Hz |
| Cooling Method | Forced Air Cooling |
| Operating Temperature Range | +25°C (Rated Output), 0°C to +40°C (Operating) |
Amplifier Research 200T8G18 Options:
- 200T1G3A - E1 - Removable outer enclosure, size 19.8 x 11.7 x 30 in. (50.3 x 29.7 x 76.2 cm); adds 14kg (30 lbs) to weight of E2
- 200T1G3A - E2 - Without outer enclosure, size 19 x 10.5 x 30 in. (48.3 x 26.7 x 76.2 cm); weight 46kg (100 lbs)
- 200T1G3A - E2S - Without outer enclosure; slides and front handles installed for rack mounting; size same as E2, adds 3kg (5 lbs) to weight of E2
- 200T1G3A - S1R - Reflected sample port on rear panel, type N female connector; forward and reflected sample port calibration data supplied on disk in Excel format at 51 points, evenly spaced over the specified frequency range
| Model | 200T8G18 |
|---|

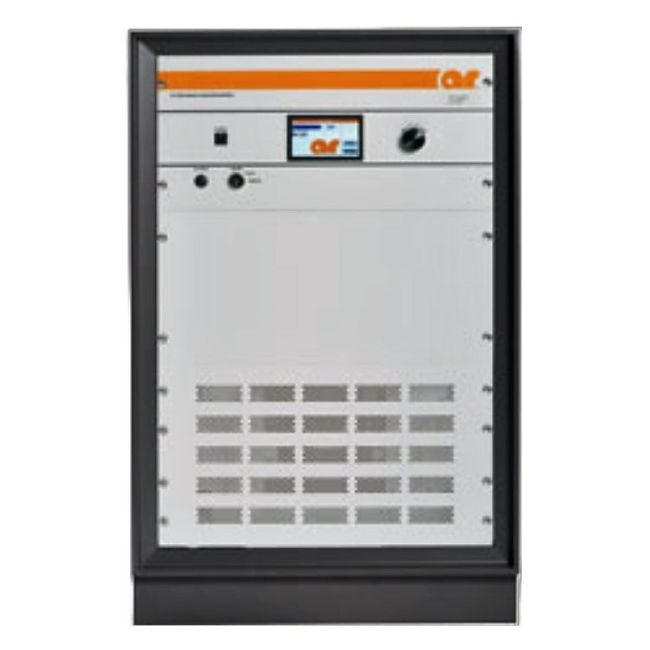

The Amplifier Research 200T8G18 is a forced-air cooled, broadband traveling wave tube microwave amplifier delivering a conservative minimum of 200 W output over the 7.5–18 GHz range, with ≥ 53 dB gain, VSWR protection, modular power supply, and front-panel digital monitoring of helix current, cathode voltage, baseplate temperature, and more, complete with built-in IEEE-488 (GPIB) interface.
Ideal for both benchtop and rack-mount applications, it faithfully reproduces AM, FM, and pulse modulation, offers harmonic suppression, and serves EMC RF susceptibility testing, industrial and academic R&D, and service environments requiring instant bandwidth and reliable performance.
Testwall can supply the used Amplifier Research 200T8G18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 200T8G18.
