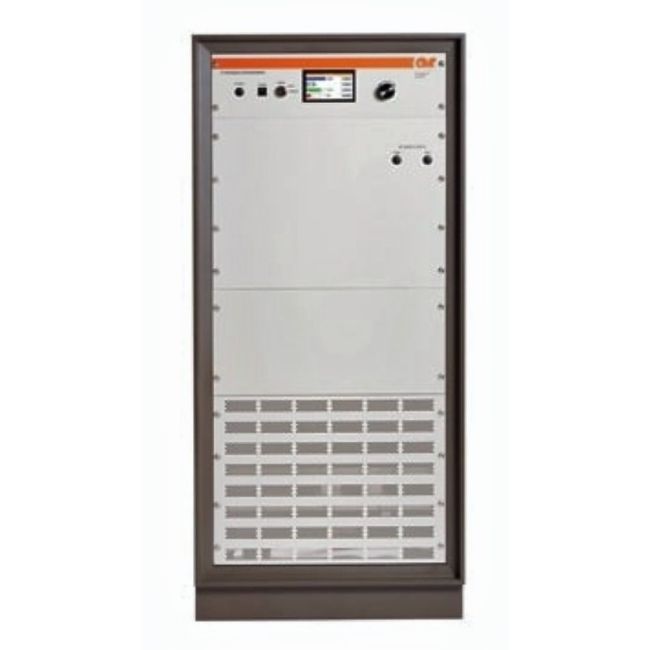

Amplifier Research 2500A225B
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 225 MHz |
| Output Power (CW) | 2500 Watts |
| Gain | 63 dB minimum |
| Input Power for Rated Output | 100 mW (20 dBm) maximum |
| Output Impedance | 50 Ohms |
| Input Impedance | 50 Ohms |
| Input VSWR | 2.0:1 maximum |
| Harmonic Distortion | -10 dBc maximum |
| Power Requirements | 208 VAC, 3-phase, 50/60 Hz |
| Cooling | Forced air (internal blower) |
Amplifier Research 2500A225B Options:
- 2500A225B - F - RF Input Connector Location: Front
- 2500A225B - R - RF Input Connector Location: Rear
- 2500A225B - SPF - RF Sample Ports Front
- 2500A225B - SPR - RF Sample Ports Rear
- 2500A225B - LV - Primary Power 200-240 VAC
- 2500A225B - HV - Primary Power 380-415 VAC
| Model | 2500A225B |
|---|
The Keysight (Aglient) Amplifier Research 2500A225B is a solid-state, self-contained broadband amplifier delivering a minimum of 2 500 W RF output instantly from 10 kHz to 225 MHz, offering exceptional gain (≥ 64 dB), linearity, and flatness (±2–3 dB with input leveling). It features internal, self-contained liquid-assisted air cooling, a stylish portable enclosure, front-panel gain control, and push-pull LDMOS circuitry for low distortion and high stability.
Designed for demanding test environments, it includes RF input leveling to prevent overdrive, full third-order intercept and harmonic performance, and versatile local/remote control via a Digital Control Panel (color LCD touchscreen) and a comprehensive Remotes Package (GPIB, RS-232, fiber-optics, USB, Ethernet).
Testwall can supply the used Keysight (Aglient) Amplifier Research 2500A225B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 2500A225B.
