Ophir 5194
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 300 W |
| Spectral Range | 0.15 – 12 µm |
| Detector Type | Thermopile |
| Aperture | 30 mm |
| Damage Threshold (CW) | 5 kW/cm² |
| Response Time | 0.5 seconds (to 95%) |
| Absorber Type | Metallic Black Coating |
| Connector Type | 7-pin DIN |
| Operating Temperature | 10°C – 40°C |
| Calibration Uncertainty | ±3% |
Ophir 5194 Options:
- 5194 - RE - Rear RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5194 - FE - Front RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5194 - R - Rear RF Connector model
- 5194 - F - Front RF Connector model
| Model | 5194 |
|---|

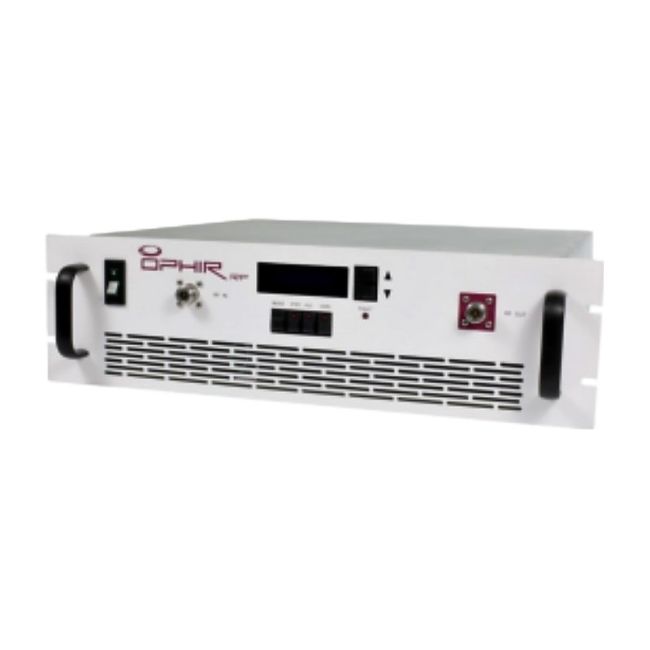

The Ophir 5194 is a 100 Watt broadband amplifier operating across the 2 - 6 GHz frequency range, featuring Class A/AB linear power devices that deliver a minimum gain of +53 dB, excellent third-order intercept, and wide dynamic range. It ensures high efficiency with proven reliability thanks to advanced components.
Designed for versatile signal formats including CW, AM, FM, PM, and Pulse, the Ophir 5194 offers 100 Watts minimum saturated output power, superior spurious rejection below -60 dBc, and compact lightweight construction with forced-air cooling for demanding environments.
Testwall can supply the used Ophir 5194, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5194.
