Amplifier Research 250W1000C
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 250 Watts CW Minimum |
| Gain | 55 dB Minimum |
| Gain Flatness | ±3.5 dB Maximum |
| Input for Rated Output | 10 mW (10 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum (into matched load) |
| Harmonic Distortion | -10 dBc Maximum |
| Power Requirements | 208/240 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
Amplifier Research 250W1000C Options:
- 250W1000C - FN - RF Input Connector Location: Front, Type N
- 250W1000C - RN - RF Input Connector Location: Rear, Type N
- 250W1000C - FN - RF Output Connector Location: Front, Type N
- 250W1000C - RN - RF Output Connector Location: Rear, Type N
- 250W1000C - E - Enclosure (Cabinet included)
- 250W1000C - NE - No Enclosure (Cabinet removed, for rack mounting)
| Model | 250W1000C |
|---|

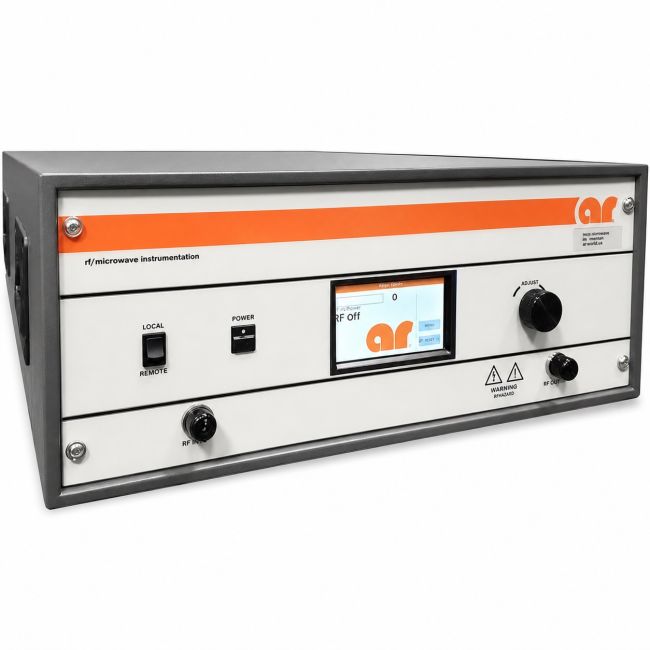

The Amplifier Research 250W1000C is a solid-state, air-cooled, broadband amplifier delivering a minimum of 250 watts RF output power. It features a Digital Control Panel (DCP) for both local and remote operation, with all control functions accessible through the Remotes Package. The design ensures high gain, wide instantaneous bandwidth, and superior linearity for demanding RF applications.
Engineered with RF input overdrive protection, the Amplifier Research 250W1000C employs an input leveling circuit to maintain performance stability above 0dBm. It supports faithful reproduction of AM, FM, or Pulse modulation and withstands full mismatch tolerance at 100% rated power without foldback.
Testwall can supply the used Amplifier Research 250W1000C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 250W1000C.
