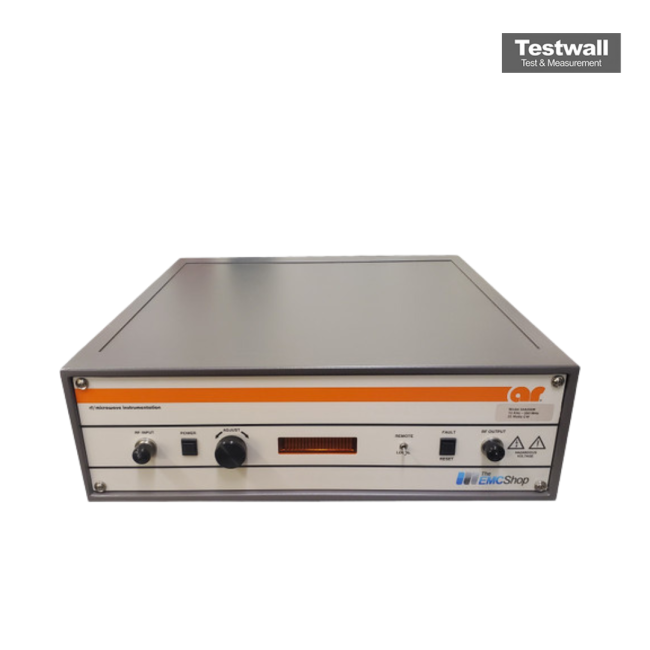

Amplifier Research 30W1000A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power (Minimum) | 30 Watts CW (minimum) |
| Gain (Typical) | 50 dB (typical) |
| Input Power for Rated Output | 0 dBm (1 mW) nominal |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Harmonics and Spurious Signals | -10 dBc or less at rated output power |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Cooling Method | Forced air cooling (internal fans) |
| Connectors | Type N Female (Input and Output) |
| Model | 30W1000A |
|---|
The Amplifier Research 30W1000A is a broadband amplifier covering up to 1 GHz with ~30 W CW output. Equipped with Automatic Level Control (ALC), it ensures consistent performance even under varying input conditions. With flat gain, solid-state reliability, and compact design, it is built for precision and stability in demanding test environments.
Ideal for educational labs, communications testing, and low-power EMC applications, the 30W1000A delivers repeatable, stable output for accurate measurements and reliable test results.
Testwall can supply the used Amplifier Research 30W1000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 30W1000A.
