Amplifier Research 500T6G18
| Attribute | Value |
|---|---|
| Frequency Range | 6 GHz – 18 GHz |
| Output Power | 500 Watts minimum saturated output power |
| Gain | 50 dB minimum |
| Input Power for Rated Output | 0 dBm nominal |
| Power Requirements | 208/240 VAC, 3-phase, 50/60 Hz |
| Cooling Method | Forced air cooling |
| Input Connector | Type N Female |
| Output Connector | WR-62 Waveguide |
| Harmonics | -20 dBc or less |
| Operating Temperature | 0°C to 50°C |
Amplifier Research 500T6G18 Options:
- 500T6G18 - 500T6G18 - With removable enclosure
- 500T6G18 - 500T6G18M1 - Shipped without an outer cabinet
- 500T6G18 - 500T6G18M2 - Enclosure removed for rack mounting – slides and front handles installed
| Model | 500T6G18 |
|---|

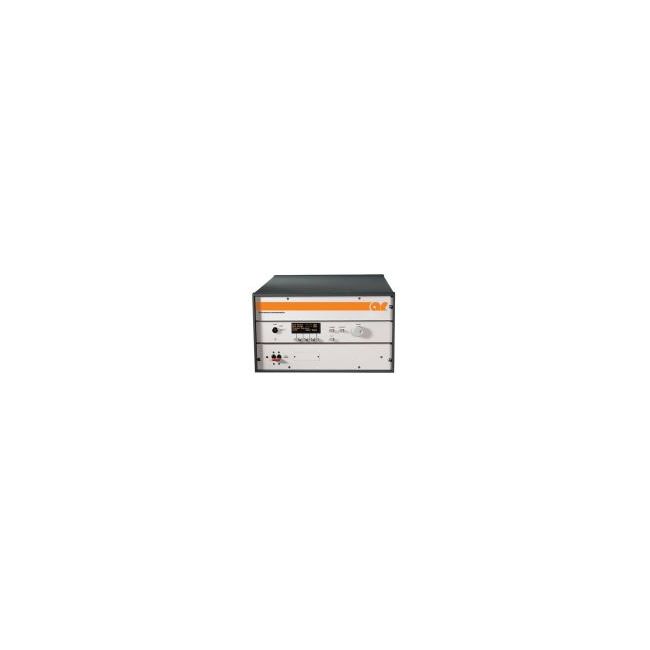

The Amplifier Research 500T6G18 is a broadband traveling wave tube (TWT) microwave amplifier offering 500 watts minimum output with reduced harmonics and high gain. It includes a reliable TWT subsystem, front-panel digital display for forward/reflected power, and status indicators for power, faults, and remote operation. Standard features include IEEE-488 interface, VSWR protection, gain control, and RF output sample port.
Ideal for EMC RF susceptibility testing, industrial R&D, service, and university applications, the Amplifier Research 500T6G18 delivers consistent RF power with extensive monitoring options and flexible control interfaces.
Testwall can supply the used Amplifier Research 500T6G18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 500T6G18.
