Amplifier Research 500U1000
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 1000 MHz |
| Output Power | 500 Watts CW minimum |
| Gain | minimum 50 dB |
| Input Power for Rated Output | 5 mW (typical) |
| Output VSWR | 2.5:1 maximum (will not damage amplifier into any load) |
| Input VSWR | 2.0:1 maximum |
| Harmonic Distortion | -10 dBc maximum at rated output |
| Power Requirements | 220 VAC, single phase, 50/60 Hz, 30 A |
| Cooling | Forced air (internal fans) |
| Connectors | Type N female (input and output) |
Amplifier Research 500U1000 Options:
- 500U1000 - F - RF Input Connector Location: Front
- 500U1000 - R - RF Input Connector Location: Rear
- 500U1000 - F - RF Output Connector Location: Front
- 500U1000 - R - RF Output Connector Location: Rear
- 500U1000 - NSP - No RF Sample Ports
- 500U1000 - SPF - RF Sample Ports Front
- 500U1000 - SPR - RF Sample Ports Rear
- 500U1000 - E - Enclosure
- 500U1000 - NE - No Enclosure
| Model | 500U1000 |
|---|

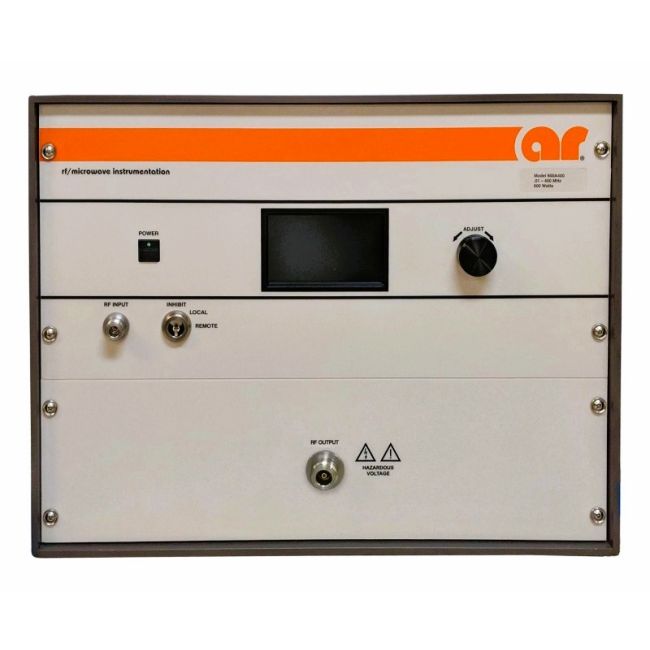

The Amplifier Research 500U1000 is a solid-state, air-cooled broadband amplifier engineered for applications demanding high linearity, instantaneous bandwidth, and substantial gain. Delivering up to 500 watts of RF power when paired with a sweep generator, it comes in a sleek cabinet for benchtop use or can be rack-mounted without the housing. A front panel gain control ensures easy adjustment of output levels to meet specific test requirements with precision and reliability.
Equipped with advanced protection, the Amplifier Research 500U1000 features an RF input leveling circuit preventing overdrive, and thermal safeguards that shut down DC supply during overheating. The integrated Digital Control Panel (DCP) allows both local and remote operation, enhancing control flexibility and operational safety for demanding test environments.
Testwall can supply the used Amplifier Research 500U1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 500U1000.
