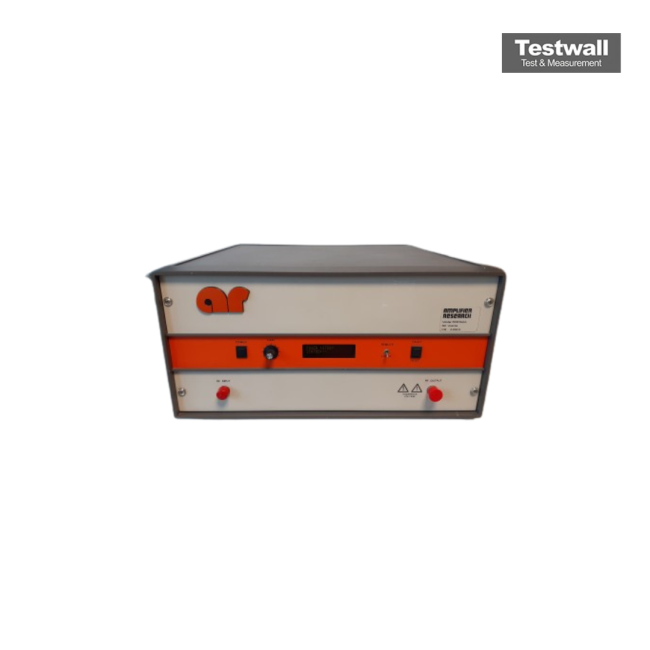

Amplifier Research 50S1G4M3
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz – 4 GHz |
| Minimum Output Power | 50 Watts CW |
| Gain | 50 dB minimum |
| Gain Flatness | ±3.5 dB maximum |
| Input for Rated Output | 0 dBm maximum |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Noise Figure | 12 dB typical |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Cooling Method | Forced Air Cooling |
| Model | 50S1G4M3 |
|---|
The Amplifier Research 50S1G4M3 is a solid-state amplifier operating from 1 GHz to 4 GHz with an output power of approximately 50 W CW. The 'M3' version introduces advanced monitoring functionality, providing refined performance over earlier models. Its linear design ensures accurate gain and low distortion across the full frequency range, making it ideal for demanding RF test environments.
Engineered for automated systems and precise test sequences, the Amplifier Research 50S1G4M3 integrates seamlessly into modern lab workflows. It provides stable gain and reliable operation for consistent, repeatable testing.
Testwall can supply the used Amplifier Research 50S1G4M3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 50S1G4M3.
