Anritsu 3652
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Connector Type | Type N (male) |
| Impedance | 50 Ohm |
| VSWR | 1.06 maximum |
| Insertion Loss | 0.15 dB maximum at 18 GHz |
| Power Handling | Average: 150 W at 25°C |
| Peak Power | 5 kW maximum |
| Operating Temperature | -54°C to +125°C |
| Body Material | Stainless Steel |
| Application | Precision RF and Microwave Termination / Calibration Component |
Anritsu 3652 Options:
- 3652A - Base - K Connector Calibration Kit (broadband loads, male and female test ports)
- 3652A-1 - Option 1 - K Connector Calibration Kit with Sliding Loads
| Model | 3652 |
|---|

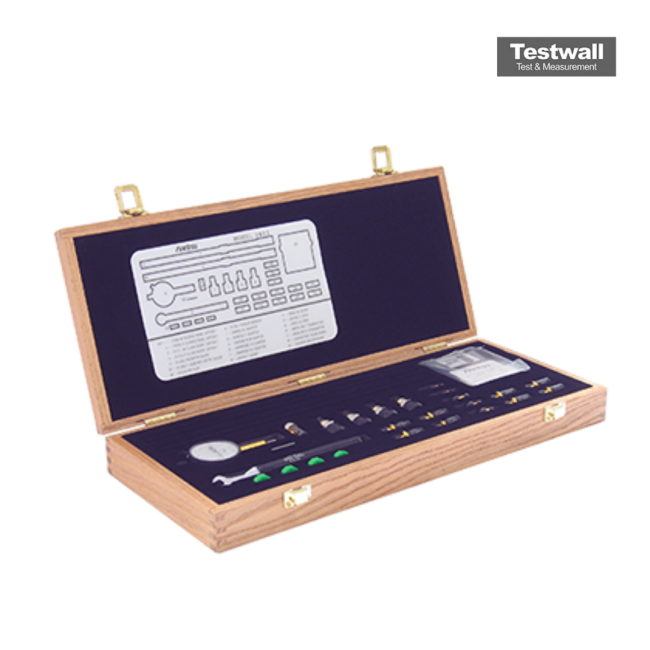

The Anritsu 3652 Calibration Kit is designed for VectorStar MS46xx VNA series, providing full 12-term SOLT or sliding-load calibration across wide frequency ranges. It ensures traceable, repeatable, and precise measurements, supporting models like MS4642B, MS4644A, and MS4647B. With precision connectors, it minimizes uncertainty to parts-per-thousand, making it indispensable for RF/microwave applications.
Engineered for advanced labs, the 3652 kit enhances measurement accuracy in network analysis, enabling reliable component characterization and optimized testing processes for demanding RF and microwave workflows.
Testwall can supply the used Anritsu 3652 Calibration Kit, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 3652 Calibration Kit.
