Anritsu 37247D
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 20 GHz |
| Instrument Type | Vector Network Analyzer (VNA) |
| Number of Ports | 2 |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -20 dBm to +10 dBm |
| Connector Type | 3.5 mm (male) |
| S-Parameter Measurements | S11, S21, S12, S22 |
| Display | Color CRT Display |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100–240 VAC, 47–63 Hz |
| Model | 37247D |
|---|

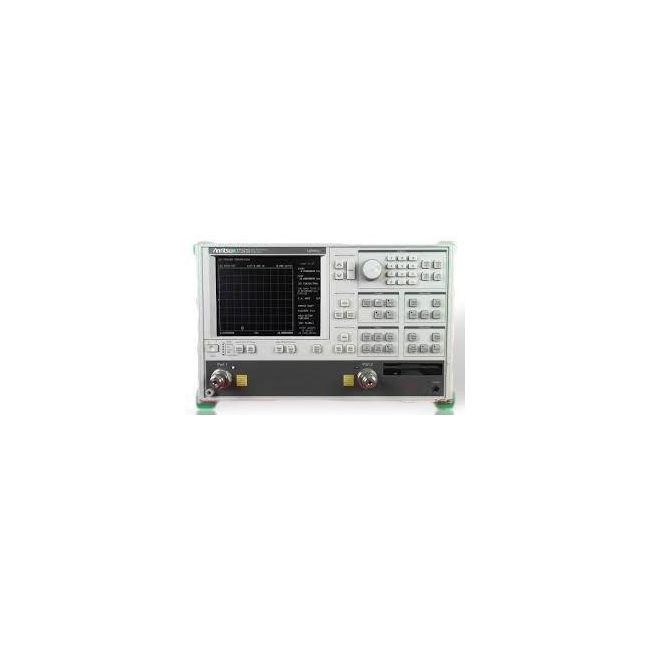

The Anritsu 37247B Vector Network Analyzer offers a frequency span from 40 MHz to 20 GHz, integrating a synthesized signal source, auto-reversing test set, and tuned four-channel receiver in a compact benchtop format. It supports 12-term error corrected sweeps for precise and repeatable measurements, with features such as LRL/LRM calibration, adapter-removal, and multi-trace display options. The system includes GPIB communication, built-in hard and floppy disk storage, and a large LCD display with external VGA support.
This analyzer is ideal for both R&D and production environments, enabling advanced microwave testing of passive RF components with rapid and accurate evaluation. Its user-friendly interface streamlines workflows, ensuring fast throughput and reliable results.
Testwall can supply the used Anritsu 37247B Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37247B Vector Network Analyzer.
