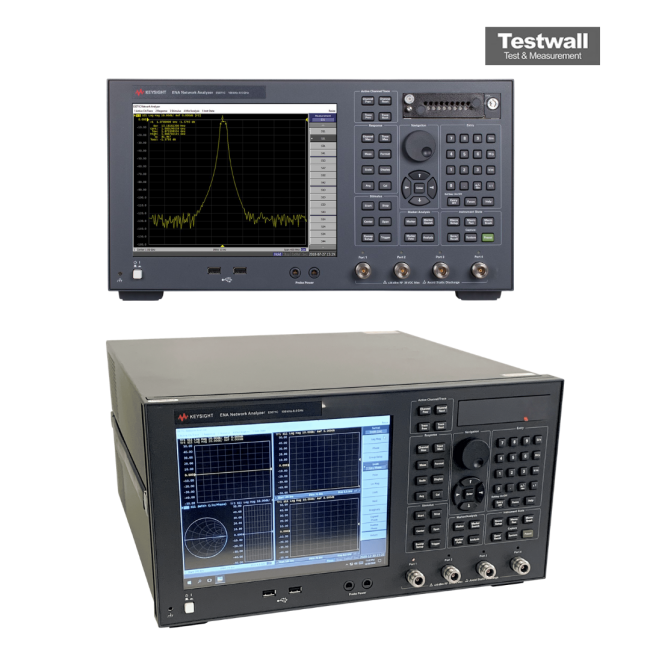

Keysight (Agilent) E5071C-485
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | 123 dB specified, 130 dB typical (10 Hz IFBW) |
| Output Power Range | -55 dBm to +10 dBm |
| Bias Tees | Yes, built-in |
| Measurement Parameters | S-parameters, mixed-mode (balanced) S-parameters, impedance, group delay, phase |
| IF Bandwidth | 10 Hz to 1.5 MHz |
| Number of Points | 2 to 20,001 points |
| Trace Noise | 0.004 dB rms at 70 kHz IFBW (10 MHz to 4.38 GHz) |
| Connector Type | Type-N female, 50 Ohm |
| Display | 10.4-inch XGA colour LCD touchscreen |
| Interfaces | LAN, USB, GPIB, Handler I/O |
Keysight Technologies E5071C-485 Options:
- E5071C-485 - 1E5 - High stability time base
- E5071C-485 - UNQ - Standard stability time base
- E5071C-485 - 017 - Removable hard disk drive
- E5071C-485 - 019 - Standard hard disk drive
- E5071C-485 - 008 - Frequency offset mode
- E5071C-485 - TDR - Enhanced time domain analysis
- E5071C-485 - 010 - Time domain analysis
- E5071C-485 - 790 - Measurement Wizard Assistant software
- E5071C-485 - 1CM - Rack mount kit
- E5071C-485 - 1CN - Front handle kit
- E5071C-485 - 1CP - Rack mount and front handle kit
- E5071C-485 - 810 - Adds a keyboard
- E5071C-485 - 820 - Adds a mouse
- E5071C-485 - 1A7 - ISO 17025 compliant calibration
- E5071C-485 - A6J - ANSI Z540 compliant calibration
The Keysight (Agilent) E5071C‑485 extends the E5071C‑480 with integrated bias‑tees and a lower start frequency of 100 kHz, enabling advanced impedance and active device testing in 4‑port setups. It features a frequency range of 100 kHz–8.5 GHz, over 123 dB dynamic range, ~0.004 dB rms trace noise, and swift sweep speeds around 39 ms with full calibration support. Enhanced with VBA scripting and balanced/cross‑port measurement, it ensures precise and efficient signal analysis.
Ideal for RF engineers, the E5071C‑485 supports high‑resolution 4‑port vector network analysis, especially in active component validation and broadband impedance matching applications.
Testwall can supply the used Keysight (Agilent) E5071C‑485, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C‑485.
