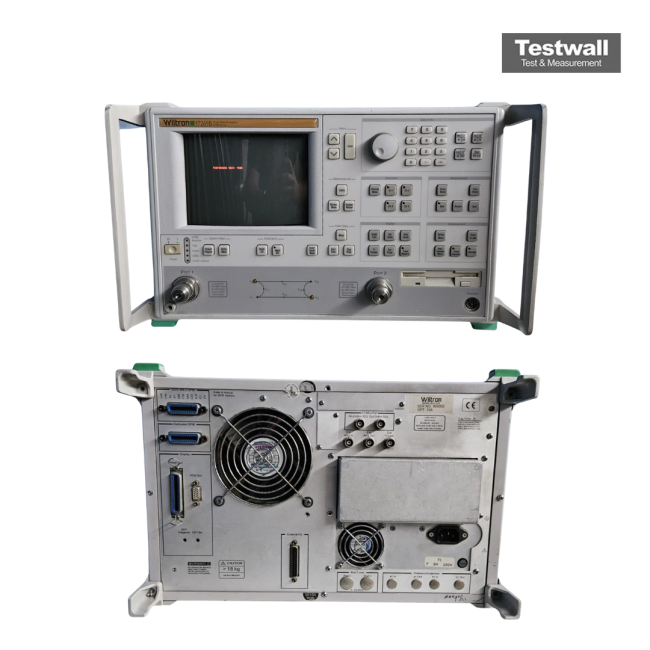

Anritsu 37269B
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 40 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), magnitude, phase, group delay, impedance |
| Number of Ports | 2-Port Vector Network Analyzer |
| Connector Type | 2.4 mm (K-connector) coaxial |
| Frequency Resolution | 1 Hz |
| Display | Color CRT display with multiple trace formats |
| Calibration Methods | SOLT, LRL/LRM, TRL/TRM, and other standard calibration methods |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, floppy disk drive for data storage |
Anritsu 37269B Options:
- 37269B - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack
- 37269B - Option 1A - Rack Mounting: Rack mounting kit containing a set of mounting ears and hardware to permanently mount instrument in a standard 19-inch equipment rack
- 37269B - Option 2A - High Speed Time (Distance) Domain Measurement Capability
- 37269B - Option 4 - External SCSI-2 Hard Disk Drive Compatibility: Provides SCSI-2 rear panel connector for connection of an external SCSI HDD. Removes internal HDD
- 37269B - Option 7A - Universal Test Port Configuration: Replaces Universal/K Connector (standard) with Universal/GPC-7
- 37269B - Option 7N - Universal Test Port Configuration: Replaces Universal/K Connector (standard) with Universal/N, male
- 37269B - Option 7NF - Universal Test Port Configuration: Replaces Universal/K Connector (standard) with Universal/N, female
- 37269B - Option 7S - Universal Test Port Configuration: Replaces Universal/K Connector (standard) with Universal/3.5 mm, male
- 37269B - Option 10A - High Stability Time Base and 1 Hz Resolution: Replaces standard TCXO with ovenized crystal oscillator (aging stability 1x10⁻⁹/day, temperature stability 5x10⁻⁹ over 0° to +55°C range); also adds 1 Hz frequency resolution
- 37269B - Option 11 - Reference Loop Extension Cables: Provides access to the a1 sampler RF input, allowing the user direct access to this channel
- 37269B - Option ES 31 - 3 year on-site repair
- 37269B - Option ES 37 - 3 year on-site verification
- 37269B - Option ES 38 - 3 year on-site Mil-Std verification
- 37269B - Option ES 51 - 5 year on-site repair
| Model | 37269B |
|---|
The Anritsu 37269B is a professional-grade vector network analyzer offering coverage from 40 MHz to 40 GHz. It provides precise characterization of RF components, filters, and transmission lines, with support for magnitude, phase, Smith chart visualizations, LOG/LIN scaling, and advanced trace overlay functions. Featuring six independent markers, marker sweep, memory capabilities, and a clear 7.5″ color VGA display, it ensures detailed measurement accuracy and reliable results in demanding RF applications.
Equipped with autoscaling, dual-source control, and seamless LabVIEW compatibility, the Anritsu 37269B is optimized for complex RF testing scenarios across a broad frequency spectrum.
Testwall can supply the used Anritsu 37269B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37269B.
