Keysight (Agilent)

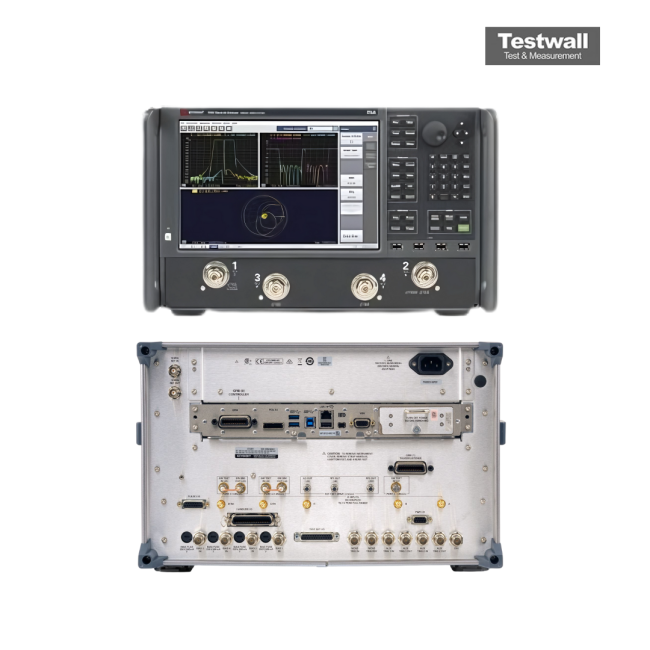

Keysight (Agilent) N5224B-400
PNA B Series Microwave Analyzers
10 MHz to 43.5 GHz Frequency Range
4 Number of Ports
Up to 132 dB Dynamic Range
-90 dBm to +13 dBm Output Power Range
0.004 dB RMS at 10 Hz IF bandwidth Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -90 dBm to +13 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 2.4 mm (male) |
| IF Bandwidth | 1 Hz to 15 MHz |
| Measurement Speed | Up to 42,000 points per second (fast sweep mode) |
| Power Level Accuracy | ±0.8 dB |
| Option Description | Option 400: 4-Port Configuration with extended frequency coverage to 43.5 GHz |
| Measurement Parameters | S-parameters, group delay, phase noise (opt.) |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5224B-200 | 2 | 10 MHz to 43.5 GHz | standard test set |
| N5224B-201 | 2 | 10 MHz to 43.5 GHz | configurable test set |
| N5224B-205 | 2 | 900 Hz to 43.5 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5224B-217 | 2 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5224B-219 | 2 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5224B-220 | 2 | 900 Hz to 43.5 GHz | source step attenuators, receiver step attenuators, low-frequency extension to 900 Hz |
| N5224B-400 | 4 | 10 MHz to 43.5 GHz | |
| N5224B-401 | 4 | 10 MHz to 43.5 GHz | configurable test set |
| N5224B-405 | 4 | 900 Hz to 43.5 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5224B-417 | 4 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5224B-419 | 4 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5224B-420 | 4 | 900 Hz to 43.5 GHz | source step attenuators, receiver step attenuators, low-frequency extension to 900 Hz |
Keysight (Agilent) N5224B-400 Options:
- N5224B - 210 - 2-port, single source, with metrology configuration
- N5224B - 410 - 4-port, dual source, with metrology configuration
The Keysight (Agilent) N5224B-400 is a high-frequency PNA/L network analyzer operating from 900 Hz to 43.5 GHz, with rugged 2.4 mm front ends for reliable connections and precise measurements. It delivers premier dynamic range and linearity for amplifier, mixer, and frequency converter testing.
With built-in software for nonlinear device analysis, it offers comprehensive functionality and ease-of-use in advanced RF test environments.
Testwall can supply the used Keysight (Agilent) N5224B-400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5224B-400.
