Anritsu 37269C
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 40 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -20 dBm to +10 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| Connector Type | 2.4 mm (male) test port connectors |
| Trace Noise | Less than 0.005 dB RMS |
| IF Bandwidth | 1 Hz to 30 kHz |
| Number of Data Points | 2 to 1601 points per sweep |
| Interface / Connectivity | GPIB (IEEE-488), RS-232, and LAN (optional) |
Anritsu 37269C Options:
- 37269C - Option 1 - Rack Mounting (track slides with 90° tilt capability, mounting ears, and front panel handles for standard 19-inch equipment rack)
- 37269C - Option 1A - Rack Mounting (mounting ears and hardware to permanently mount instrument in a standard 19-inch equipment rack)
- 37269C - Option 2A - High Speed Time (Distance) Domain Measurement Capability
- 37269C - Option 4 - External SCSI-2 Hard Disk Drive Compatibility (provides SCSI-2 rear panel connector for connection of an external SCSI HDD; removes internal HDD)
- 37269C - Option 7A - Universal Test Port Configuration: Universal/GPC-7
- 37269C - Option 7N - Universal Test Port Configuration: Universal/N, male
- 37269C - Option 7NF - Universal Test Port Configuration: Universal/N, female
- 37269C - Option 7S - Universal Test Port Configuration: Universal/3.5 mm, male
- 37269C - Option 10A - High Stability Time Base and 1 Hz Frequency Resolution
- 37269C - Option 11 - Reference Loop Extension Cables (provides access to the a1 sampler RF input)
- 37269C - Option ES 31 - 3 Year On-Site Repair
- 37269C - Option ES 37 - 3 Year On-Site Verification
- 37269C - Option ES 38 - 3 Year On-Site Mil-Std Verification
- 37269C - Option ES 51 - 5 Year On-Site Repair
| Model | 37269C |
|---|

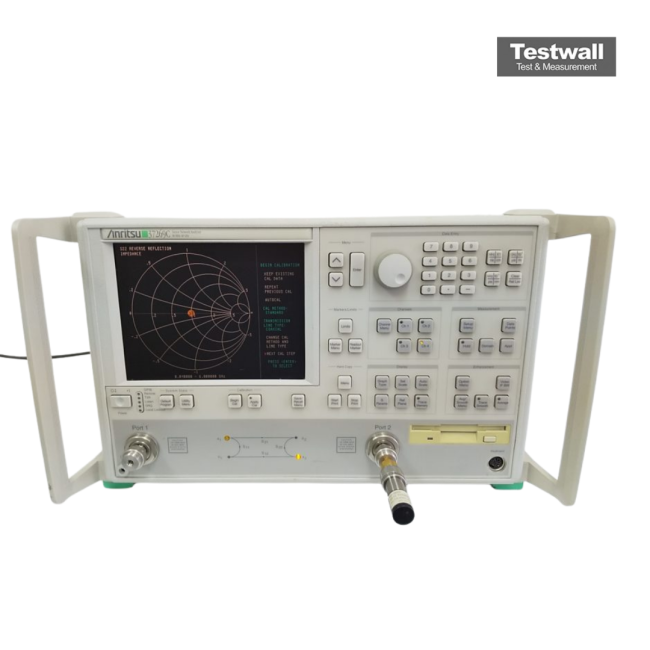

The Anritsu 37269C Vector Network Analyzer (VNA) delivers precise S-parameter measurements from 40 MHz to 40 GHz with integrated synthesized source, auto-reversing test set, and a four-channel receiver. It features solid-state switching, multiple source control, advanced calibration methods, and fast GPIB throughput, ensuring efficient and accurate results. The large LCD display enhances usability for bench-top testing.
With LRL/LRM and adapter removal calibrations, internal data storage, and built-in AutoCal control, the Anritsu 37269C is suited for high-performance network analysis in demanding environments.
Testwall can supply the used Anritsu 37269C Vector Network Analyzer (VNA), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37269C Vector Network Analyzer (VNA).
