Anritsu 37347D
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 20 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -20 dBm to +10 dBm |
| Connector Type | 3.5 mm (SMA Compatible) |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), Impedance, Admittance, Group Delay |
| Display | 10.4-inch Color LCD Display |
| Sweep Points | 2 to 1601 Points |
| Interface/Connectivity | GPIB, RS-232, Parallel Printer Port |
| Power Requirements | 90–264 VAC, 47–63 Hz |
| Model | 37347D |
|---|

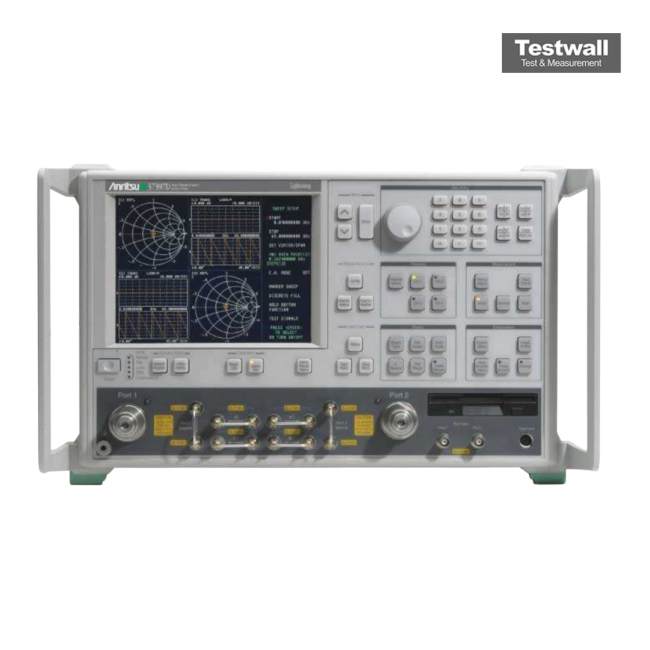

The Anritsu 37347D Lightning D‑Series Vector Network Analyzer offers outstanding performance for defense, satellite, radar, broadband communications, and high‑speed component testing. It builds on the 37000D series with advanced features such as Multiple Source Control, E/O and O/E testing, gain compression testing, Embed/De‑Embed functionality, frequency resolution down to 1 Hz, a high‑stability reference, internal bias tees, extended power range, and rear panel IF inputs compatible with millimeter‑wave upgrades.
Designed for both R&D and manufacturing environments, it delivers intuitive programmability, accelerated Ethernet data transfers, mixer‑measurement NxN calibration utilities, and versatile test coverage for next‑generation designs.
Testwall can supply the used Anritsu 37347D, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37347D.
