Anritsu 37369C
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 40 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Connector Type | 2.4 mm (K) Connectors |
| Measurement Parameters | S-Parameters (S11, S12, S21, S22), Impedance, Admittance, Group Delay |
| IF Bandwidth | 10 Hz to 3 kHz (selectable) |
| Sweep Points | 2 to 1632 points |
| Display | 10.4-inch Color CRT Display |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, Floppy Disk Drive |
| Model | 37369C |
|---|

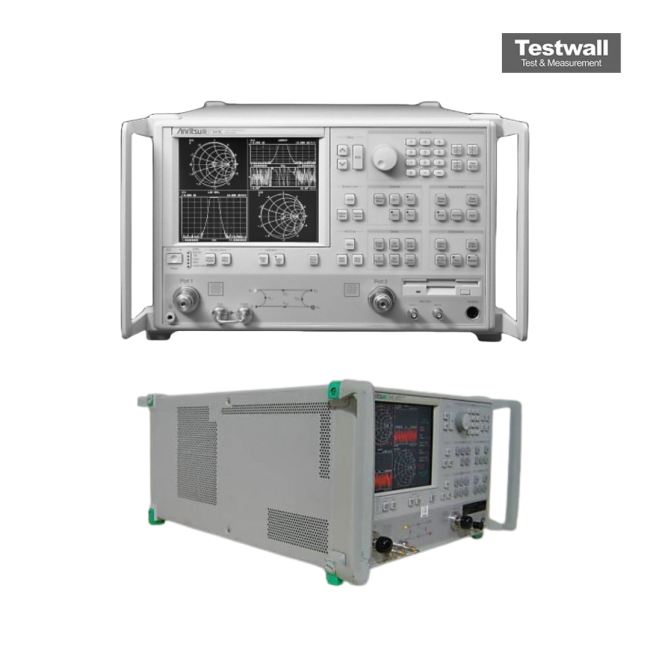

The Anritsu 37369C Network Analyzer, part of the Lightning series, delivers precise S-parameter measurements from 40 MHz to 40 GHz. Featuring a fast sweeping synthesized source, auto reversing test set, solid-state transfer switch, and a four-channel receiver, it integrates a synthesized source, S-parameter test set, and tuned receiver in one compact system. The analyzer also provides direct access to all four receiver samplers via its front panel, making it ideal for both active and passive device testing.
It supports antenna, frequency conversion, and multiple output device measurements with high throughput enabled by 12-term error corrected sweeps, GPIB transfers, and LRL/LRM calibration. Results are displayed on a large LCD color display or external VGA monitor for convenience.
Testwall can supply the used Anritsu 37369C Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37369C Network Analyzer.
