Anritsu 37369D
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 40 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| Connector Type | 2.4 mm (K-connector) coaxial connectors |
| IF Bandwidth | 10 Hz to 30 kHz |
| Trace Noise | Less than 0.005 dB RMS at 10 Hz IF bandwidth |
| Number of Data Points | 2 to 1632 points per sweep |
| Calibration Methods | SOLT, LRL/LRM, TRL/TRM, SRM, and automatic calibration supported |
| Model | 37369D |
|---|

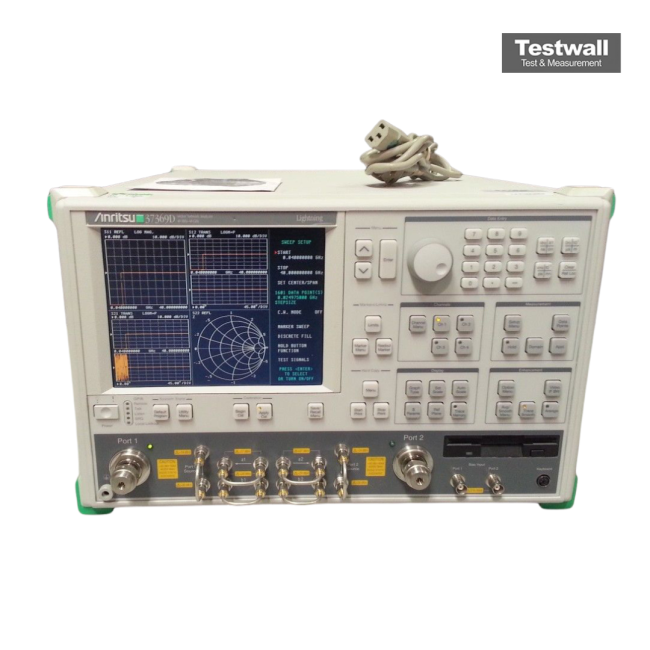

The Anritsu 37369D Vector Network Analyzer belongs to the Lightning family, offering high-performance two-port VNA testing up to 40 GHz. It supports advanced applications such as Time Domain, Gain Compression, Harmonic, IMD, Frequency Translation, Multiport, and E/O and O/E measurements. Equipped with step attenuators, internal bias tees, a gain compression application, and extended power range, it ensures precise and versatile measurements for active and passive device applications.
This VNA is ideal for defense, satellite, radar, broadband communications, and optoelectronic markets. It features Multiple Source Control, NxN calibration utilities, embed/de-embed applications, high stability frequency reference, and 1 Hz resolution for demanding test environments.
Testwall can supply the used Anritsu 37369D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37369D.
