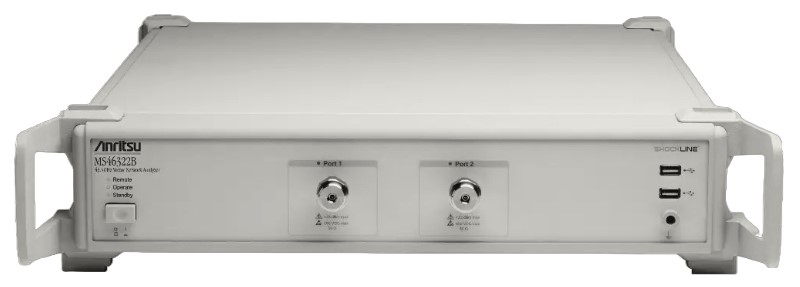

Anritsu MS46322B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | up to 127 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | 4 µs per point (fast sweep mode) |
| Number of Test Points (per sweep) | Up to 100,001 points |
| IF Bandwidth | 1 Hz to 1 MHz |
| Connector Type | N-Type (f), 50 Ohm |
| Power Supply | 100–240 VAC, 50/60 Hz |
Anritsu MS46322B Options:
- MS46322B - 010 - 1 MHz to 8 GHz, type N(f) ports
- MS46322B - 020 - 1 MHz to 20 GHz, type Ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
- MS46322B - 043 - 1 MHz to 43.5 GHz, type Ruggedized Extended-K™(m) ports (compatible with standard K (2.92 mm), 3.5 mm and SMA connectors)
- MS46322B - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46322B - 002 - Time Domain with Time Gating
- MS46322B - 024 - Universal Fixture Extraction
- MS46322B - 097 - Accredited Calibration, with data
- MS46322B - 098 - Standard Calibration, ISO 17025 compliant, without data
- MS46322B - 099 - Premium Calibration, ISO 17025 compliant, with data
| Model | MS46322B |
|---|
The Anritsu MS46322B Economy Vector Network Analyzer series offers 2-port VNAs covering 1 MHz to 43.5 GHz using patented ShockLine VNA-on-chip technology. It features 130 µs/point sweep speed, >100 dB dynamic range, and a compact 2U chassis with integrated power supply and computer. Manual testing is streamlined with a full-featured GUI via user-supplied peripherals.
Ideal for mmWave antenna and passive 5G component testing, it fits easily in rack-mounted systems with SCPI command support and industry-standard LAN remote control.

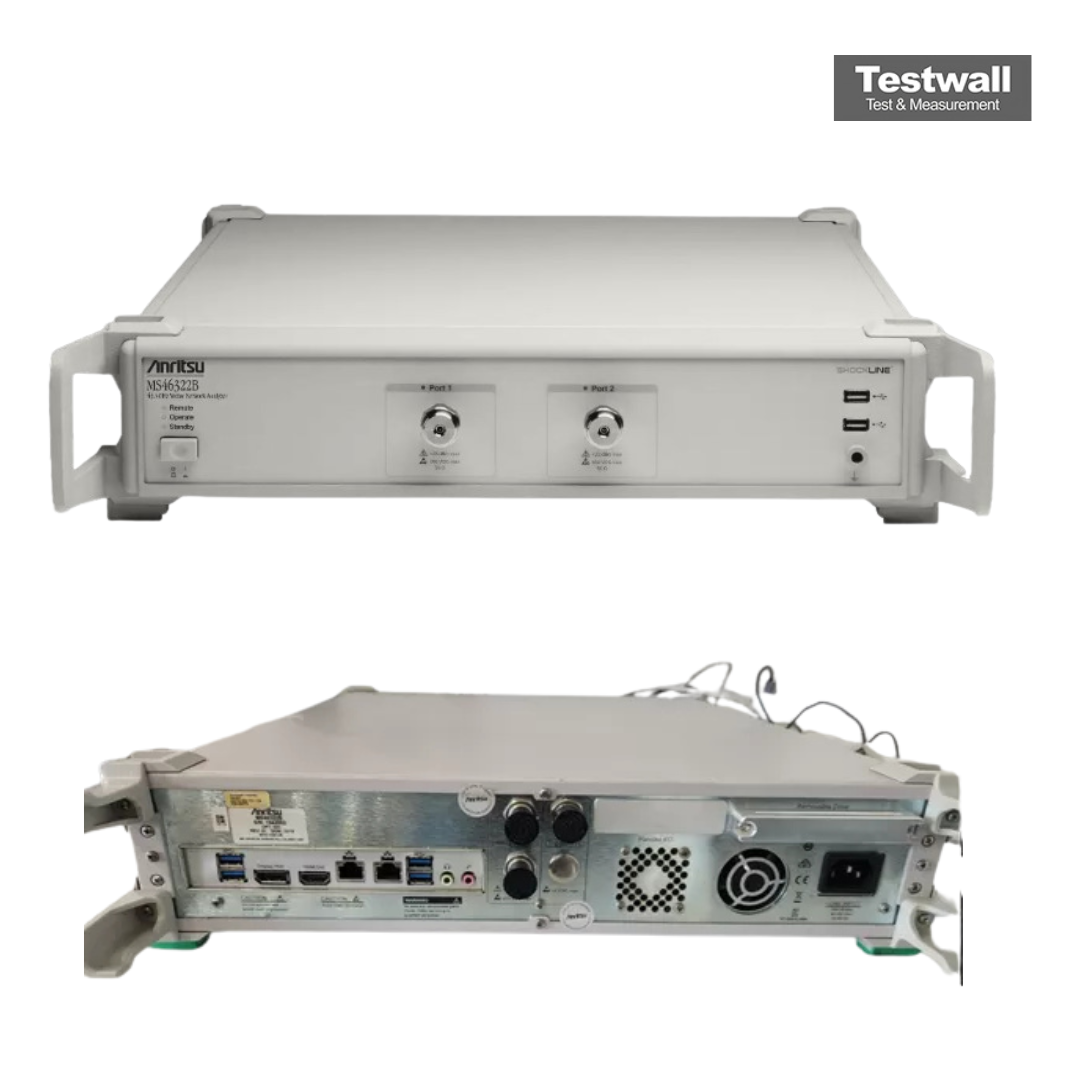

Testwall can supply the used Anritsu MS46322B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46322B
