Anritsu 37397A
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 65 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), magnitude, phase, group delay, SWR |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Number of Ports | 2-port Vector Network Analyzer |
| Connector Type | 2.4 mm (V-connector) coaxial connectors |
| Frequency Resolution | 1 Hz |
| Trace Noise | Less than 0.005 dB RMS |
| Display | Color CRT display with multiple data formats including Smith Chart, Polar, and Cartesian |
| Interface/Connectivity | GPIB (IEEE-488) interface for remote control and automation |
Anritsu 37397A Options:
- 37397A - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90 tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack
- 37397A - Option 1A - Rack Mounting: Rack mounting kit containing a set of mounting ears and hardware to permanently mount instrument in a standard 19-inch equipment rack
- 37397A - Option 2 - High Speed Time (Distance) Domain Measurement Capability
- 37397A - Option 4 - External SCSI-2 Hard Disk Drive Compatibility: Provides SCSI-2 rear panel connector for connection of an external SCSI HDD. Remove internal HDD
- 37397A - Option 7A - Universal Test Port Configuration Replaces Universal/K Connector with Universal/GPC-7
- 37397A - Option 7N - Universal Test Port Configuration Replaces Universal/K Connector with Universal/N, male
- 37397A - Option 7NF - Universal Test Port Configuration Replaces Universal/K Connector with Universal/N, female
- 37397A - Option 7S - Universal Test Port Configuration Replaces Universal/K Connector with Universal/3.5 mm, male
- 37397A - Option 10A - High Stability Time Base: Replaces the standard temperature compensated crystal oscillator with an ovenized crystal oscillator. Adds 1 Hz frequency resolution
- 37397A - Option ES 31 - 3 year on-site repair
- 37397A - Option ES 37 - 3 year on-site verification
- 37397A - Option ES 38 - 3 year on-site Mil-Std verification
- 37397A - Option ES 51 - 5 year on-site repair
| Model | 37397A |
|---|

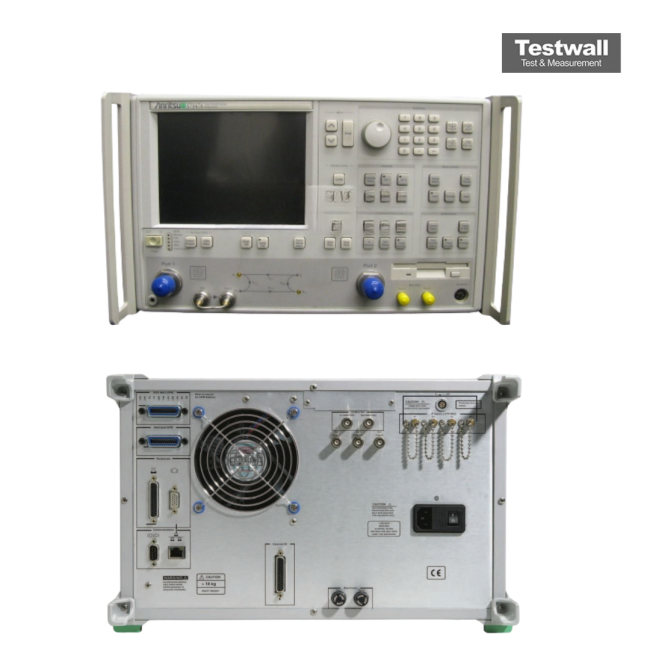

The Anritsu 37397A Vector Network Analyzer delivers precise S-parameter measurements from 40 MHz to 65 GHz, integrating a synthesized source, S-parameter test set, and tuned receiver in one compact unit. It features fast 12-term error corrected sweeps, intuitive GPIB data transfers, and a large LCD color display for clear results. Key functions include multiple source control, a four-channel receiver, internal storage drives, and advanced calibration options such as LRL/LRM and adapter removal calibrations.
Ideal for both active and passive device testing, the Anritsu 37397A offers high throughput measurements with features like auto-reversing test set, solid-state transfer switch, and built-in AutoCal control. It is well-suited for laboratory and bench-top environments requiring reliable and efficient testing.
Testwall can supply the used Anritsu 37397A Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37397A Vector Network Analyzer.
