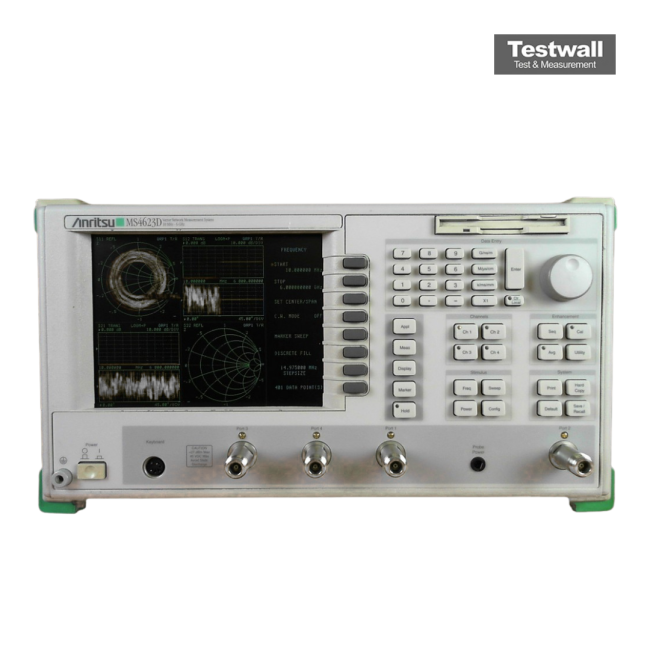

Anritsu MS4623D
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | 110 dB typical |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Connector Type | N-Type (50 Ohm) |
| Display | 10.4-inch color LCD touchscreen |
| Calibration Methods | Full 2-port SOLT, TRL, LRL, and other standard calibration methods |
| Interface/Connectivity | GPIB, RS-232, and Ethernet (LAN) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MS4623D Options:
- MS4623D - MS4600/1 - Rack Mount Kit with Slides
- MS4623D - MS4600/1A - Rack Mount Kit with Handles
- MS4623D - MS4600/2 - Time (Distance) Domain
- MS4623D - MS4600/4F - 3 GHz Noise Figure (50 MHz to 3000 MHz)
- MS4623D - MS4600/4G - 6 GHz Noise Figure (50 MHz to 6000 MHz)
- MS4623D - MS4600/8 - Harmonic Measurements
- MS4623D - MS4600/11NM - Replaces N female with N male Test Port Adapters
- MS4623D - MS4600/11S - Replaces N female with 3.5mm male Test Port Adapters
- MS4623D - MS4600/11SF - Replaces N female with 3.5mm female Test Port Adapters
- MS4623D - MS4600/11A - Replaces N female with GPC-7 male Test Port Adapters
- MS4623D - MS4600/13 - Intermodulation Distortion Measurements
- MS4623D - MS4600/98 - Z540/Guide 25 Calibration
- MS4623D - MS4600/99 - Premium Calibration
- MS4623D - ES31 - 3 Year On-Site Repair
- MS4623D - ES37 - 3 Year On-Site Standard Calibration
- MS4623D - ES38 - 3 Year On-Site Premium Calibration
- MS4623D - ES32 - 3 Year Return-to-Service Center Standard Calibration
- MS4623D - ES34 - 3 Year Return-to-Service Center Premium Calibration
- MS4623D - ES50 - 5 Year Return-to-Service Center Repair Only
- MS4623D - ES52 - 5 Year Return-to-Service Center Standard Calibration
- MS4623D - ES54 - 5 Year Return-to-Service Center Premium Calibration
- MS4623D - ES55 - 5 Year Return-to-Service Center Repair plus Standard Calibration
- MS4623D - ES56 - 5 Year Return-to-Service Center Repair plus Premium Calibration
| Model | MS4623D |
|---|
The Anritsu MS4623D is a high-performance 6 GHz vector network analyzer designed for precise RF testing. It offers a frequency range from 10 MHz to 6 GHz, measurement speed of 150 μsec/point, and a wide 125 dB dynamic range. With source power up to +10 dBm, receiver noise as low as –115 dBm, and S-parameter uncertainty below 0.05 dB, it ensures superior accuracy. Features include mixed-mode S-parameters, arbitrary impedance, AutoCal® for simplified multi-port calibrations, versatile connectors (N-type, 3.5 mm, GPC-7), and an external SCSI interface for extensive storage.
This analyzer is ideal for characterizing RF components across time, frequency, and power domains. Its advanced markers, overlay displays, and automated sequences enhance measurement efficiency and simplify complex data analysis for R&D and production environments.
Testwall can supply the used Anritsu MS4623D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4623D.
