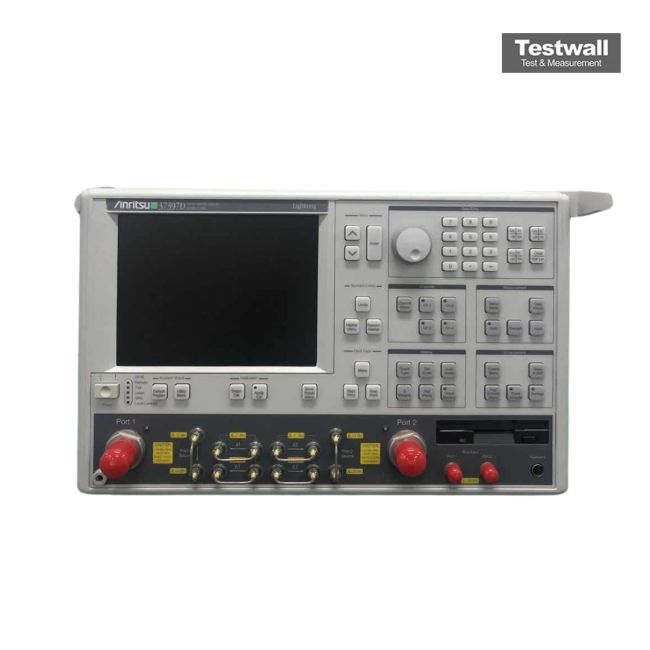

Anritsu 37397D
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 65 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -20 dBm to +10 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Connector Type | 1.85 mm (V-connector) precision coaxial connectors |
| Sweep Points | 2 to 1601 points per sweep |
| IF Bandwidth | 1 Hz to 30 kHz |
| Calibration Methods | SOLT, LRL/LRM, TRL/TRM, and AutoCal supported |
| Interface and Connectivity | GPIB, LAN (Ethernet), and USB interfaces for remote control and data transfer |
Anritsu 37397D Options:
- 37397D - Option 1A - Rack mount kit with handles only (no slides). Rack mount kit containing a set of mounting ears and hardware to permanently mount the instrument in a standard 19-inch equipment rack.
- 37397D - Option 2A - Time Domain (Distance) measurement capability; analyze impedance discontinuities as a function of time or distance with Lightning's high speed time domain capability.
- 37397D - Option 4A - External SCSI-2 hard disk drive compatibility. Provides SCSI-2 rear panel connector for connection of an external SCSI hard disk. Removes internal hard disk drive.
- 37397D - Option 7A - Replaces K test port connectors with GPC-7 connectors
- 37397D - Option 7N - Replaces K test port connectors with N(m) connectors
- 37397D - Option 7NF - Replaces K test port connectors with N(f) connectors
- 37397D - Option 7S - Replaces K test port connectors with 3.5 mm-(m) connectors
- 37397D - Option 15 - Flexible test set; provides direct access to all four reference and test channels and adds two auxiliary source loops for each port for connecting amplifiers etc.
- 37397D - Option 98 - Z540/Guide 25 calibration
- 37397D - Option 99 - Premium calibration
- 37397D - Option SM5955 - 67 GHz Operation frequency extension option for 37x97D series network analyzers. Include the appropriate test port cable and calibration kit.
- 37397D - Option ES31 - 3 Year On-Site Repair
- 37397D - Option ES37 - 3 Year On-Site Standard Calibration
- 37397D - Option ES38 - 3 Year On-Site Premium Calibration
- 37397D - Option ES32 - 3 Year Return-to-Service Center standard calibration
- 37397D - Option ES34 - 3 Year Return-to-Service Center premium calibration
- 37397D - Option ES50 - 5 Year Return-to-Service Center repair only
- 37397D - Option ES52 - 5 Year Return-to-Service Center standard calibration
- 37397D - Option ES54 - 5 Year Return-to-Service Center premium calibration
- 37397D - Option ES55 - 5 Year Return-to-Service Center repair plus standard calibration
- 37397D - Option ES56 - 5 Year Return-to-Service Center repair plus premium calibration
| Model | 37397D |
|---|
The Anritsu 37397D network analyzer is engineered for precise measurement of two-port devices, capturing both transmission and reflection parameters across wide frequency ranges. It employs synthesized-frequency sources, multi-receiver support for ratioed measurements, and advanced calibration options including SOLT and waveguide kits.
Its extensive features include amplifier gain compression testing, optoelectronic device measurement, multiport testing, internal bias tees, extended power range, and high-stability frequency reference with 1 Hz resolution.
Testwall can supply the used Anritsu 37397D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37397D.
