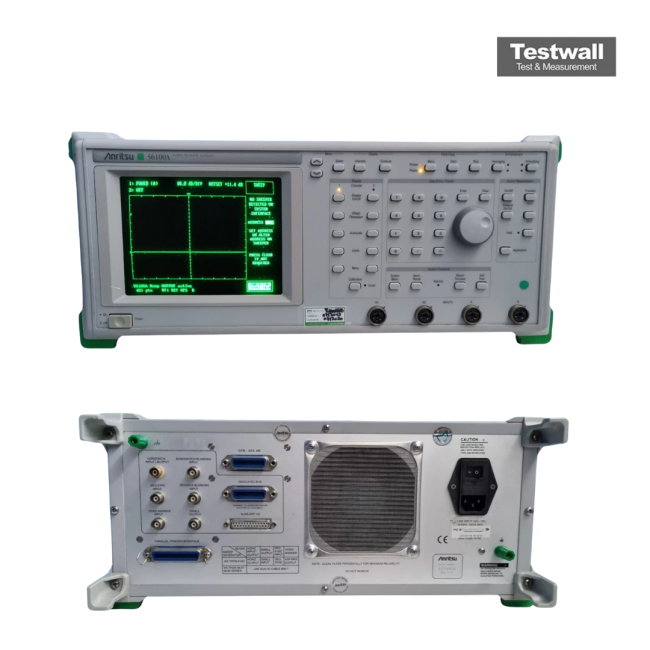

Anritsu 56100A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 65 GHz |
| Number of Test Ports | Up to 4 ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase |
| IF Bandwidth | 1 Hz to 1 MHz |
| Connector Type | 2.4 mm (K-connector) |
| Display | 10.4-inch color TFT LCD touchscreen |
| Interface/Connectivity | GPIB, USB, LAN (Ethernet) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Anritsu 56100A Options:
- 56100A - Option 1 - Rack Mounting 19 inch rack mount with slides optional
- 56100A - Option 12 - Front Panel Cover
- 56100A - Option 13 - Front Mounted Handles
- 56100A - Option 25 - Maintenance Manual
- 56100A - Option 26 - Extra Operation and GPIB Programming Manual
- 56100A - Option 33 - Ink-Jet Printer
- 56100A - 40010 - Transit Case: Hard shell case with custom foam inserts and carrying handle for maximum protection of the 56100A
| Model | 56100A |
|---|
The Anritsu 56100A Scalar Network Analyzer delivers high-precision measurements of insertion loss, insertion gain, and RF power across a robust 76 dB dynamic range. It enables device-match evaluation via return loss in dB or SWR, while independent scaling of transmission and reflection traces supports flexible analysis. Multiple detectors across four inputs allow simultaneous transmission measurements on duplexers or matched amplifiers.
Featuring ratio-of-detector measurements for enhanced accuracy, the analyzer includes built-in calibration for subtraction of unwanted responses, and voltage display mode with adapter support. A 0–10 V sweep ramp output mode further extends its measurement capabilities.
Testwall can supply the used Anritsu 56100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 56100A.
