Rohde & Schwarz ZNLE6
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 6 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 120 dB |
| Output Power | -40 dBm to +3 dBm |
| Measurement Speed | 4.5 ms per 201 points (typical) |
| Port Connector Type | N female (50 Ω) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Interface/Connectivity | USB 3.0, LAN (1000BASE-T), HDMI |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
| Dimensions (W x H x D) | 350 mm x 190 mm x 245 mm |
Rohde & Schwarz ZNLE6 Options:
- ZNLE6 - R&S®FPL1-B10 - GPIB Interface
| Model | ZNLE6 |
|---|

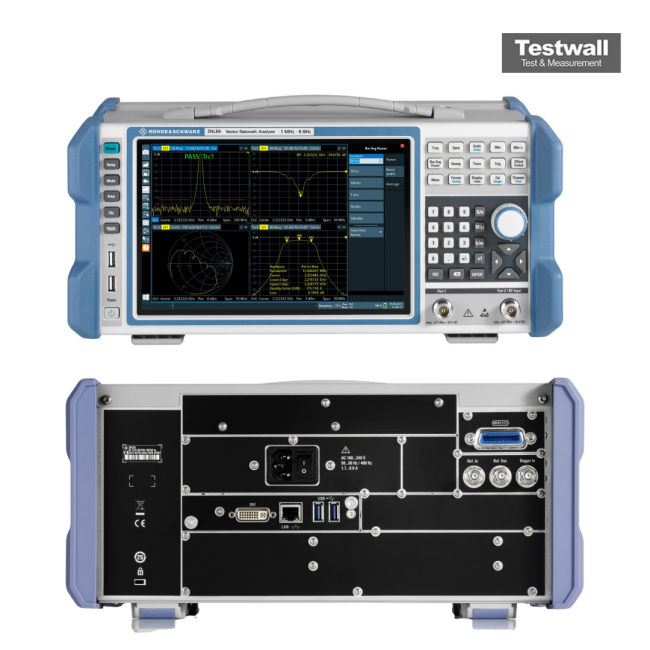

The Rohde & Schwarz ZNLE6 is a two-port vector network analyzer covering frequencies from 1 MHz to 6 GHz. Designed for efficient basic VNA applications, it operates as a standalone device with no need for an external PC. Featuring a 10.1" high-resolution (1280×800) multitouch display, it simplifies measurement setup and visualization. Key functionalities include de/embedding, fixture compensation, time domain analysis, and DTF measurements. It supports remote control via LAN and GPIB and runs on Windows 10.
The intuitive interface, softkey bar, and integrated help menu streamline operation in production and educational environments. With high measurement speed, low trace noise, and a clearly structured layout, it ensures precise and efficient testing.
Testwall can supply the used Rohde & Schwarz ZNLE6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNLE6.
