Anritsu 6769B
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz – 40 GHz |
| Output Power Range | -110 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Output Connector | 2.92 mm (K-type) female |
| Frequency Switching Speed | Less than 10 ms (typical) |
| Harmonic Suppression | -30 dBc (typical) |
| Power Level Accuracy | ±2 dB (typical) |
| Interface | GPIB, RS-232 |
| Power Requirements | 100–240 VAC, 47–63 Hz |
Anritsu 6769B Options:
- 6769B - Option 1 - Rack Mounting: Rack mount kit with chassis track slides and mounting ears. Weight is 2.3 kg (5 lb.)
- 6769B - Option 2A - Attenuator: Adds 10 dB step attenuator to increase the RF output range. Reduces rated power by 3 dB (for models with upper frequency limit ≤20 GHz, maximum attenuation 110 dB)
- 6769B - Option 2B - Attenuator: Adds 10 dB step attenuator to increase the RF output range. Reduces rated power by 3 dB (for models with upper frequency limit 26.5 GHz, maximum attenuation 110 dB)
- 6769B - Option 2C - Attenuator: Adds 10 dB step attenuator to increase the RF output range. Reduces rated power by 4 dB (for models with upper frequency limit 40 GHz, maximum attenuation 110 dB)
- 6769B - Option 9K - Rear Panel RF Output: Adds rear panel K Connector RF output. Deletes front panel connector. Degrades output power, flatness, and SWR.
| Model | 6769B |
|---|

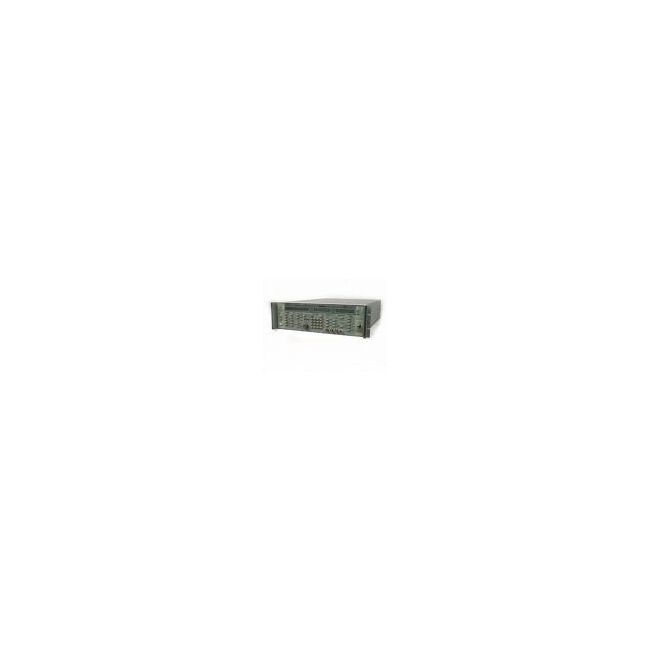

The Anritsu 6769B Swept-Frequency Synthesizer is designed for precise calibration of high-frequency instruments such as spectrum analyzers. It delivers stable continuous-wave signals across a broad frequency sweep, typically extending into the GHz range. With adjustable RF output levels and accurate calibration controls, it ensures reliable and repeatable measurements in demanding environments.
This synthesizer is highly compatible with analyzer and power meter calibration setups. It is frequently used alongside the MG3633A and power sensors in compensation routines, making it an essential tool for advanced RF test applications.
Testwall can supply the used Anritsu 6769B Swept-Frequency Synthesizer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 6769B Swept-Frequency Synthesizer.
