Anritsu 68067C
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Output Connector | 2.4 mm (female) |
| Switching Speed | less than 5 ms (typical) |
| Harmonic Suppression | -20 dBc (typical) |
| Frequency Reference | Internal/External 10 MHz reference |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Model | 68067C |
|---|

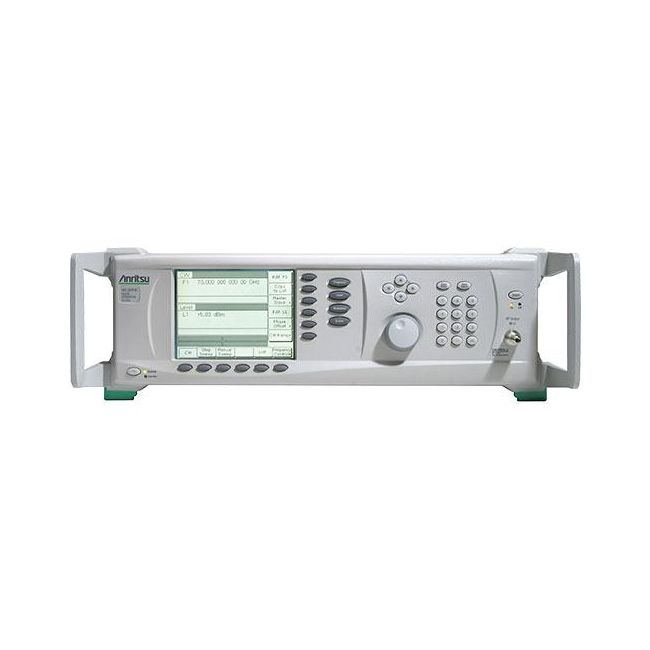

The Anritsu 68067C CW Generator delivers exceptional performance with frequency coverage from 0.1 Hz to 65 GHz in a compact 13.3 cm package. It offers ultra-low SSB phase noise, spurious suppression, and a guaranteed +17 dBm leveled power up to 20 GHz. With 0.1 Hz optional resolution, fast 5 ms switching, and wide dynamic range, it is ideal for demanding A.T.E. and CW applications.
Designed for high-throughput systems, the Anritsu 68067C supports accurate receiver sensitivity testing with –120 dBm output in 0.01 dB steps. Its digital frequency and power sweeps, SCPI programmability, and LabView driver support ensure flexible and efficient integration.

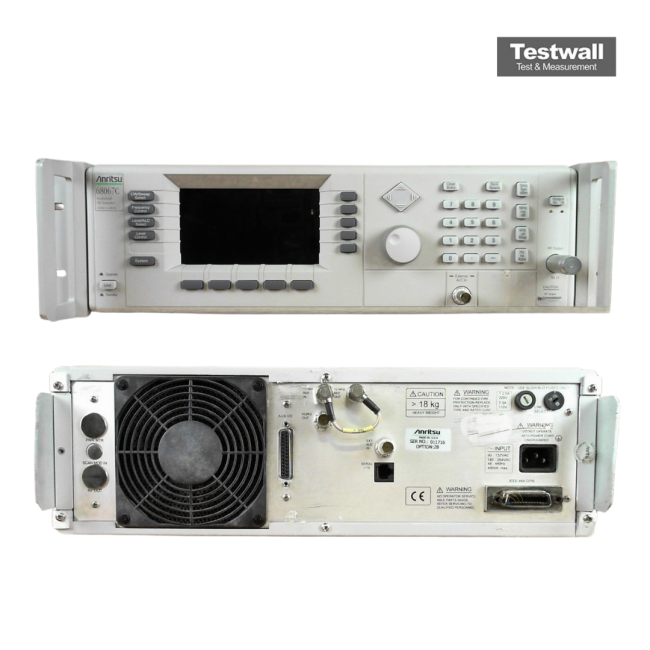

Testwall can supply the used Anritsu 68067C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 68067C.
