Anritsu 68147C
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Sweep Speed | Up to 100 GHz/s |
| Modulation Types | AM, FM, Phase, Pulse |
| Output Connector | Type-N Female (50 Ohm) |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface / Connectivity | GPIB (IEEE-488), RS-232 |
Anritsu 68147C Options:
- 68147C - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 48 cm equipment rack.
- 68147C - Option 2A - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced.
- 68147C - Option 2B - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤40 GHz. Rated RF output power is reduced.
- 68147C - Option 2E - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤8.4 GHz. Rated RF output power is reduced.
- 68147C - Option 2F - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced.
- 68147C - Option 9 - Rear Panel RF Output: Moves RF output connector to the rear panel.
- 68147C - Option 11 - 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz.
- 68147C - Option 14 - Anritsu 360B VNA Compatibility: Modifies rack mounting hardware to mate the unit in an Anritsu 360B VNA console.
- 68147C - Option 15A - High Power Output: Adds high power RF components to the instrument in the 2–20 GHz frequency range.
- 68147C - Option 16 - High Stability Time Base: Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base. Derate phase noise specification at 10 Hz offset by 8 dB.
- 68147C - Option 17A - Delete Front Panel: Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed.
- 68147C - Option 18 - mmWave Bias Output: Adds rear panel bias output to drive 54000-xWRxx millimeter wave source modules. BNC Twinax connector.
- 68147C - Option 19 - SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0.
- 68147C - Option 22 - 0.1 Hz to 10 MHz Audio Frequency: Adds CW and step sweep frequency coverage below 10 MHz. No modulation is available below 10 MHz.
| Model | 68147C |
|---|

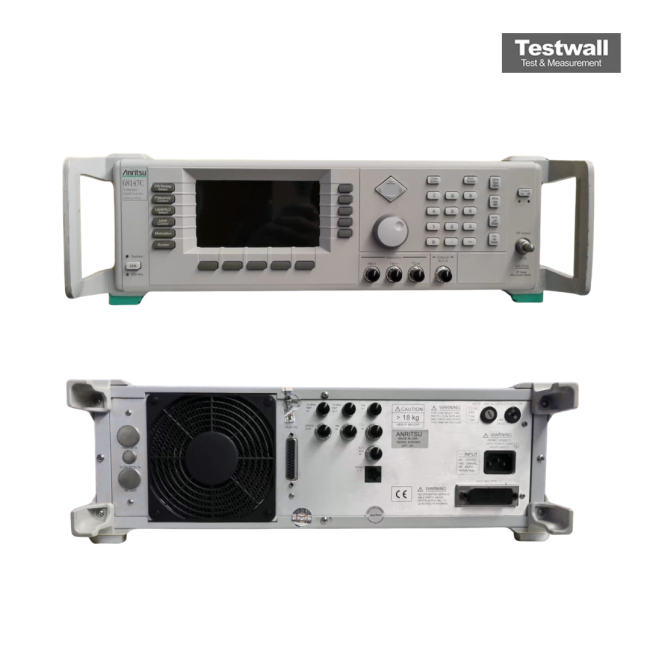

The Anritsu 68147C is a compact signal generator designed for A.T.E. applications, delivering exceptional performance in a 13.3 cm package to save rack space. It offers a frequency range from 0.01 to 20 GHz, high output power of +17 dBm to 20 GHz, and ultra-low SSB phase noise with wide dynamic range. Fast switching time under 5 ms and digital sweeps make it ideal for advanced testing setups.
With analog sweep, external FM and AM modulation, and accurate outputs, the Anritsu 68147C ensures reliable performance for Local Oscillator duty, network analysis, and CW applications in automated test environments.
Testwall can supply the used Anritsu 68147C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 68147C.
