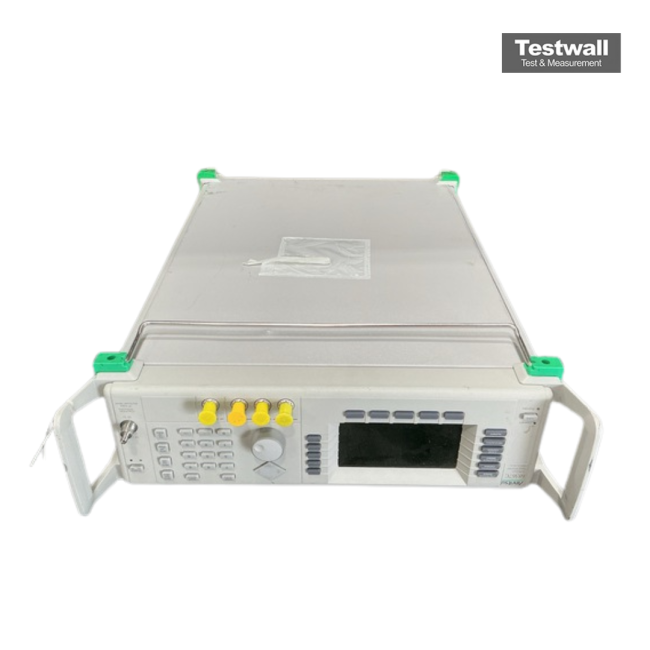

Anritsu 68367C
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Spectral Purity (Harmonics) | -30 dBc or better |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Frequency Switching Speed | Less than 10 ms (typical) |
| Output Connector | Type-N Female (50 Ohm) |
| Power Supply | 100–240 VAC, 47–63 Hz |
| Interface/Control | GPIB (IEEE-488), RS-232 |
| Model | 68367C |
|---|
The Anritsu 68367C, part of the 68C/69B series, delivers high-performance signal generation in a compact 13.3 cm package optimized for A.T.E. applications. It provides broad frequency coverage from 0.1 Hz to 65 GHz, ultra-low SSB phase noise, spurious performance, and +17 dBm guaranteed leveled power up to 20 GHz. With 0.01 dB output steps down to –120 dBm and <5 ms switching time, it ensures precise receiver sensitivity testing and fast throughput.
The Anritsu 68367C supports AM, FM, phase, pulse, scan, and user-defined modulation. Its internal modulation generators offer 7 waveform options, advanced pulse features for radar testing, and Gaussian/uniform noise capabilities for jitter simulation.
Testwall can supply the used Anritsu 68367C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 68367C.
