Anritsu 69047B
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 20 GHz |
| Output Power Range | -110 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (typical) |
| Spectral Purity (Harmonics) | -60 dBc or better |
| Output Connector | Type-N Female (50 Ohm) |
| Frequency Switching Speed | Less than 10 ms (typical) |
| Power Level Accuracy | ±1 dB |
| Interface/Control | GPIB (IEEE-488) |
| Power Requirements | 100–240 VAC, 47–63 Hz |
| Model | 69047B |
|---|

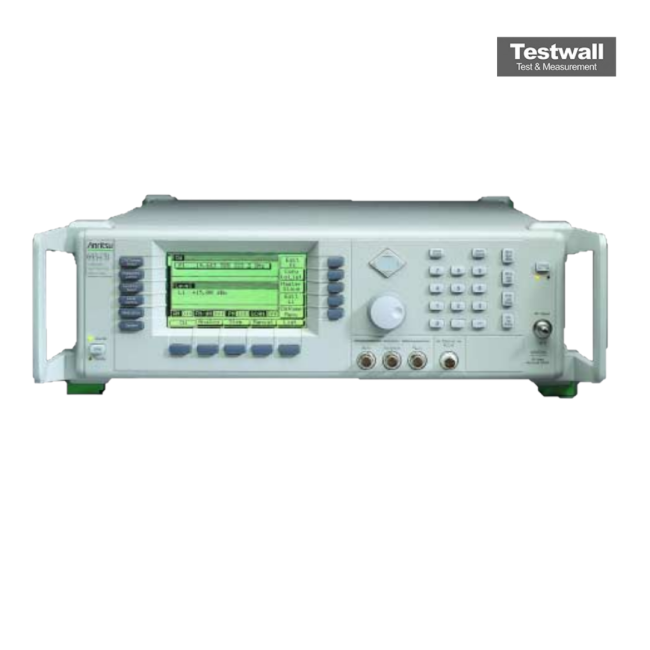

The Anritsu 69047B Synthesized CW Generator delivers precise, high-resolution phase-lock capabilities across a frequency range of 0.01 – 20.0 GHz. With output power up to +13 dBm, it supports configurations with step attenuator (+11 dBm) and electronic step attenuator (+3 dBm). This microprocessor-based generator allows discrete CW frequencies as well as broad and narrowband step sweeps, ensuring accurate and stable performance for demanding RF applications.
All generator functions can be managed directly from the front panel or remotely via the IEEE-488 GPIB interface, offering versatile control for both laboratory and production environments.
Testwall can supply the used Anritsu 69047B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69047B.
