Tektronix

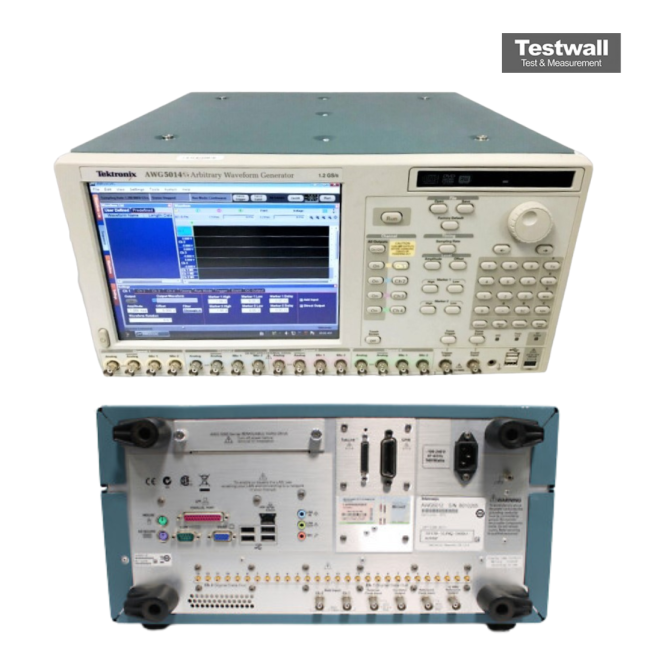

Tektronix AWG5014B
Arbitrary Waveform Generator
Up to 1.2 GS/s Sample Rate
4 analog output channels Number of Channels
14-bit DAC resolution Vertical Resolution
250 MHz Analog Bandwidth
Up to 64 MS per channel (with option) Waveform Memory
| Attribute | Value |
|---|---|
| Sample Rate | Up to 1.2 GS/s |
| Number of Channels | 4 analog output channels |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 250 MHz |
| Waveform Memory | Up to 64 MS per channel (with option) |
| Amplitude Range | 50 mVpp to 2 Vpp into 50 Ω |
| Marker Outputs | 2 markers per channel (8 total), 1.4 Vpp into 50 Ω |
| Clock Reference | Internal and external clock reference; 10 MHz reference input/output |
| Sequence Length | Up to 16,383 sequence steps |
| Connectivity & Interface | GPIB, USB, and LAN (LXI Class C compliant) |
| Model | AWG5014B |
|---|
The Tektronix AWG5014B offers next-generation signal generation with up to 32 M sample memory, four high-speed outputs, and advanced real-time sequencing capabilities. It ensures superior signal fidelity and enhanced control over output channels.
Designed for complex signal creation, it supports flexible memory configurations, precise triggering, and USB/network-based remote operations for streamlined integration in advanced test setups.
Testwall can supply the used Tektronix AWG5014B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5014B.
