Anritsu 69367B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (typical) |
| Output Connector | Type-N (female) |
| Sweep Modes | CW, Step Sweep, Analog Sweep, List Sweep |
| Modulation Types | AM, FM, Phase, Pulse |
| Harmonic Suppression | -30 dBc typical |
| Power Supply | 100-240 VAC, 47-63 Hz |
| Interface | GPIB (IEEE-488), RS-232 |
Anritsu 69367B Options:
- 69367B - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 48 cm equipment rack.
- 69367B - Option 2B - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤40 GHz. Rated RF output power is reduced.
- 69367B - Option 9 - Rear Panel RF Output: Moves RF output connector to the rear panel.
- 69367B - Option 11 - 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz.
- 69367B - Option 14 - Anritsu 360B VNA Compatibility: Modifies rack mounting hardware to mate the unit in an Anritsu 360B VNA console.
- 69367B - Option 16 - High Stability Time Base: Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base. Derate phase noise specification at 10 Hz offset by 8 dB.
- 69367B - Option 17A - Delete Front Panel: Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed.
- 69367B - Option 18 - mmWave Bias Output: Adds rear panel bias output to drive 54000-xWRxx millimeter wave source modules. BNC Twinax connector.
- 69367B - Option 19 - SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987.
- 69367B - Option 22 - 0.1 Hz to 10 MHz Audio Frequency: Adds CW and step sweep frequency coverage below 10 MHz. No modulation is available below 10 MHz. Derate output power by 1 dB for ≤20 GHz and 2 dB for >20 GHz.
| Model | 69367B |
|---|

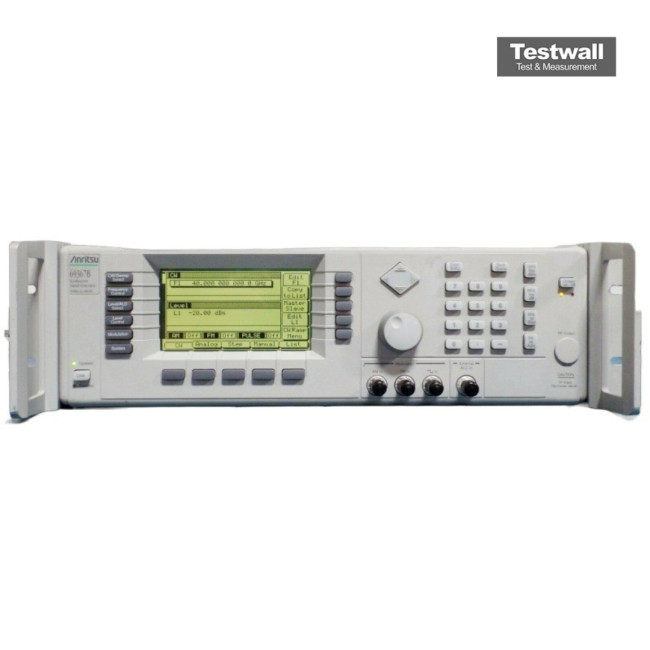

The Anritsu 69367B Synthesized High Performance Signal Generator offers a frequency range from 0.01 to 40 GHz with microprocessor-based, phase-lock precision. It supports both discrete CW signals and wide/narrow band sweeps, ensuring accurate and reliable RF testing capabilities. Full functionality is accessible locally through the intuitive front panel or remotely via IEEE-488 GPIB interface.
Designed for high-frequency applications, this generator is ideal for advanced testing environments requiring precision signal control. Its robust performance ensures versatility across communications, aerospace, and defense testing scenarios.
Testwall can supply the used Anritsu 69367B Synthesized High Performance Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69367B Synthesized High Performance Signal Generator.
