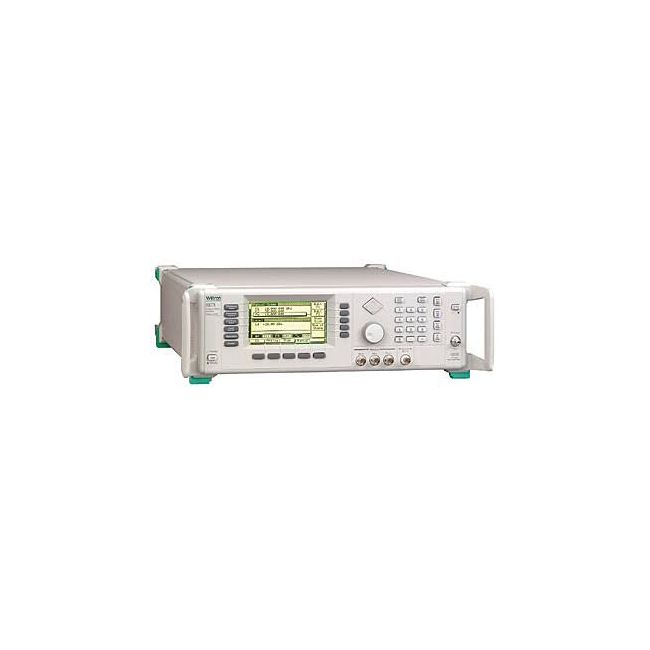

Anritsu 69397B
10MHz-65GHz Signal Generator
2 MHz to 20 GHz Frequency Range
-20 dBm to +20 dBm Output Power Range
0.001 Hz Frequency Resolution
-116 dBc/Hz at 10 kHz offset (typical) SSB Phase Noise
-30 dBc typical Spectral Purity (Harmonics)
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 20 GHz |
| Output Power Range | -20 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (typical) |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Frequency Switching Speed | Less than 5 ms to within 100 Hz |
| Power Level Accuracy | ±1 dB |
| Output Connector | Type-N (female) |
| Power Requirements | 100–240 VAC, 47–63 Hz |
| Operating Temperature Range | 0°C to 55°C |
Anritsu 69397B Options:
- 69397B - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 48 cm equipment rack
- 69397B - Option 2A - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced
- 69397B - Option 2B - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤40 GHz. Rated RF output power is reduced
- 69397B - Option 2C - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤50 GHz. Rated RF output power is reduced
- 69397B - Option 2D - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤60 GHz. Rated RF output power is reduced
- 69397B - Option 2E - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤8.4 GHz. Rated RF output power is reduced
- 69397B - Option 2F - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced
- 69397B - Option 6 - Phase Modulation (ΦM): Provides phase modulation capability. FM input, FM output and FM generator become FM/ΦM input, FM/ΦM output and FM/ΦM generator
- 69397B - Option 7 - Delete AM/FM Generators: Deletes the internal AM and FM generators. External AM and FM capability remains unchanged. (Not available in combination with Option 8 or Option 20)
- 69397B - Option 8 - Internal Power Measurement: Adds an internal power measurement function that is compatible with Anritsu 560-7, 5400-71 or 6400-71 series detectors. (Not available in combination with Option 7)
- 69397B - Option 9 - Rear Panel RF Output: Moves RF output connector to the rear panel
- 69397B - Option 10 - User-defined Modulation Capability: Provides user-defined waveform capability. Requires controller (not included). Includes cable and Windows-based software
- 69397B - Option 11 - 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz
- 69397B - Option 14 - Anritsu 360B VNA Compatibility: Modifies rack mounting hardware to mate the unit in an Anritsu 360B VNA console
- 69397B - Option 15B - High Power Output: Adds high-power RF components to the instrument in the 2–20 GHz frequency range
- 69397B - Option 16 - High Stability Time Base: Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base. Derate phase noise specification at 10 Hz offset by 8 dB
- 69397B - Option 17A - Delete Front Panel: Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed
- 69397B - Option 18 - mmWave Bias Output: Adds rear panel bias output to drive 54000-xWRxx millimeter wave source modules. BNC Twinax connector. (Not available in combination with Option 20)
- 69397B - Option 19 - SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987
- 69397B - Option 21A - Low Phase Noise, Non-pulsed Digital Downconverter: Replaces standard analog downconverter on units with low frequency limit of 10 MHz. CW only from 10 MHz to 2.2 GHz
- 69397B - Option 21B - Low Phase Noise, Pulsed Digital Downconverter: Replaces standard analog downconverter on units with low frequency limit of 10 MHz. CW with pulse modulation from 10 MHz to 2.2 GHz
- 69397B - Option 22 - 0.1 Hz to 10 MHz Audio Frequency: Adds CW and step sweep frequency coverage below 10 MHz. No modulation is available below 10 MHz. (Not available in combination with Option 20)
| Model | 69397B |
|---|
The Anritsu 69397B is a high-performance RF generator covering 0.010 to 65 GHz with ultra-low phase noise, fast switching (<5 ms), and wide dynamic range. It includes internal AM, FM, and ΦM generators offering multiple modulating waveforms, as well as external modulation, flexible pulse triggering, and advanced digital and analog sweep functionality. Output power spans from +17 dBm to −140 dBm with precise level control for demanding RF testing environments.
Engineers rely on the Anritsu 69397B to rigorously test filters, amplifiers, and other RF components thanks to its accurate output levels, rapid sweep capabilities, and robust signal simulation features.
Testwall can supply the used Anritsu 69397B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69397B.
