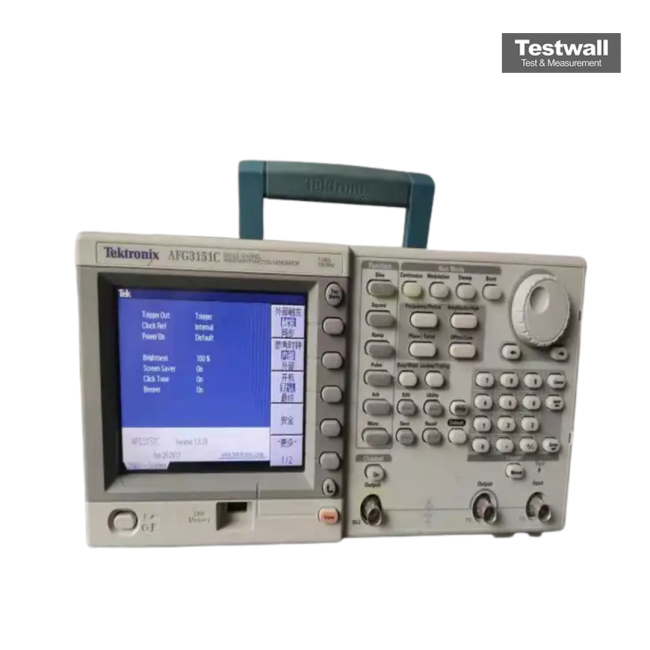

Tektronix AFG3151C
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Maximum Frequency | 150 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sin(x)/x, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and more than 150 built-in waveforms |
| Sample Rate | Up to 250 MS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory Length | 128K points per channel |
| Amplitude Range | 1 mVpp to 10 Vpp into 50 Ω; 2 mVpp to 20 Vpp into open circuit |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Connectivity / Interface | USB, GPIB, LAN (LXI compliant) |
Tektronix AFG3151C Options:
- AFG3151C - A0 - North America power plug (115 V, 60 Hz)
- AFG3151C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3151C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3151C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3151C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3151C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3151C - A10 - China power plug (50 Hz)
- AFG3151C - A11 - India power plug (50 Hz)
- AFG3151C - A12 - Brazil power plug (60 Hz)
- AFG3151C - A99 - No power cord
- AFG3151C - L0 - English manual (071-1631-xx)
- AFG3151C - L1 - French manual (071-1632-xx)
- AFG3151C - L2 - Italian manual (071-1669-xx)
- AFG3151C - L3 - German manual (071-1633-xx)
- AFG3151C - L4 - Spanish manual (071-1670-xx)
- AFG3151C - L5 - Japanese manual (071-1634-xx)
- AFG3151C - L6 - Portuguese manual (071-3042-xx)
- AFG3151C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3151C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3151C - L9 - Korean manual (071-1637-xx)
- AFG3151C - L10 - Russian manual (071-1638-xx)
- AFG3151C - L99 - No manual
- AFG3151C - C3 - Calibration Service 3 Years
- AFG3151C - C5 - Calibration Service 5 Years
- AFG3151C - D1 - Calibration Data Report
- AFG3151C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3151C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3151C - R5 - Repair Service 5 Years (including warranty)
- AFG3151C - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
- AFG3151C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3151C |
|---|
The Tektronix AFG3151C from the AFG31000 Series offers 1 or 2 channel outputs with up to 250 MHz sine waveform, 2 GSa/s sample rate, and 14-bit resolution. It includes advanced features like InstaView™, 9-inch touchscreen, and 16 Mpts waveform memory, ideal for high-performance waveform generation and real-time monitoring.
Use in applications such as component characterization, signal replication, and embedded design testing. Features include ArbBuilder, modulation modes, and sequencing with 256 steps.
Testwall can supply the used Tektronix AFG3151C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3151C.
